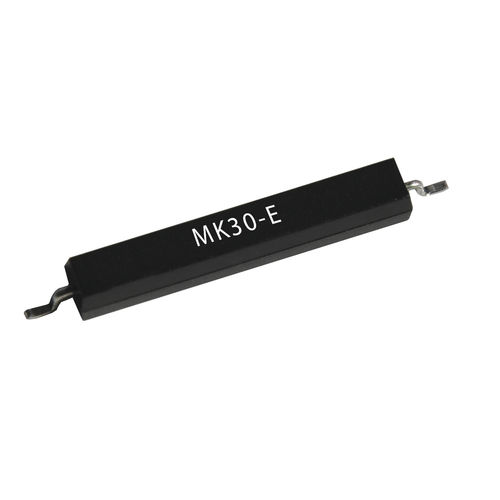

Reed magnetic sensor MK30 Series
SMD

Reed magnetic sensor - MK30 Series - StandexMeder Electronics GmbH - SMD
Reed magnetic sensor - MK30 Series - StandexMeder Electronics GmbH - SMD
Add to favorites
Compare this product
Go to the StandexMeder Electronics GmbH website for more information

Characteristics

Technology
reed
Other characteristics
SMD

Description

High voltage surface mount (SMD) MK30 Series Reed Sensor used in On/Off control switch, proximity, motion, position detection. Supplied in tape and reel according to IEC 286/part 3. Gull-wing lead design. UL Approval Specifications Contact Form 1A (SPST) Normally Open (N.O.) Operating Range 15-50 AT Rated Power Max. 100 W/1000 V DC/1 A Applications High voltage, industrial, security, telecommunications, white goods
