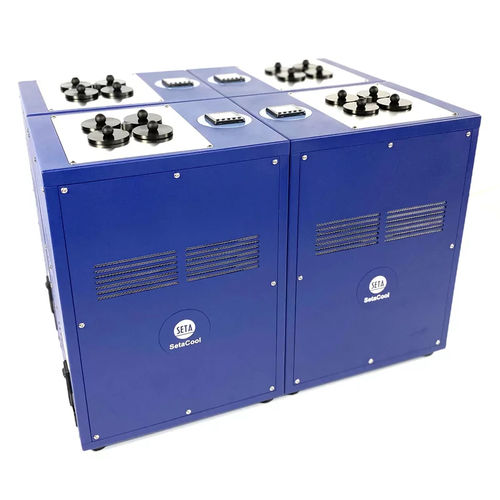

Petroleum analyzer SetaCool-16

cloud point

The SetaCool-16 is designed to provide fast, accurate and precise determination of Cloud Point, Pour Point and Cold Filter Plugging Point of petroleum products, diesel and cooling fuels to -78 °C. Four independent units, each with four test jackets allows for easier maintenance and servicing. The instrument features a built in cooling system and dry block bath which means no external cooling medium is required, whilst a built in heated top plate prevents ice formation. A state of the art cooling system eliminates the use of compressors and HFC (greenhouse gas) or flammable refrigerants, providing a safe and environmentally sustainable solution. Features • Ambient to -78 °C • Temperature stability +/- 0.2 °C or better • Built in cooling • 4 independent units x 4 test jackets • Low power consumption The SetaCool-16 is operated via a simple to use digital controller and consists of a dry block bath with four units x four test jackets. The temperature is set and sample is cooled as specified by the test method. A thermometer well is used to verify the bath temperature is correct. Test results are observed as specified by the test method. For safety, the SetaCool-16 consists of a heated top plate to prevent condensation and ice forming when the bath is cooling. NUMBER OF TEST JACKETS: 4 places x 4 units COOLING TEMPERATURE RANGE: Adjustable between Ambient to -78 °C with PID control TEMPERATURE STABILITY: +/- 0.2 °C or better TEMPERATURE DISPLAY RESOLUTION: 1 decimal place POWER: 100 V to 240 Vac 50/60 Hz SIZE (HXWXD): Individual unit: 450 x 320 x 249 mm Four unit size: 450 x 640 x 498 mm WEIGHT: Individual unit: 19.4 kg
