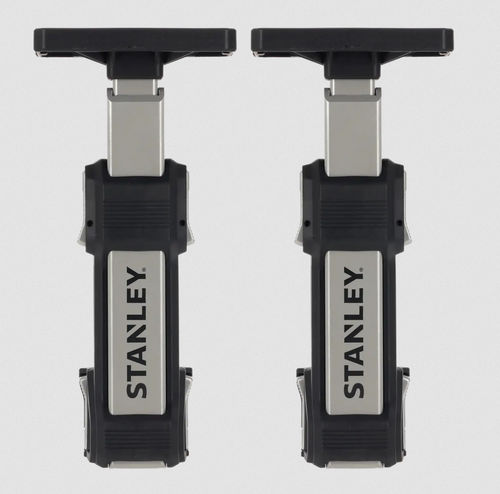

Industrial lifting column FMHT83556-1

telescopic3-stageadjustable

Overview
Easy and secure attachment of the extension to the Tradelift. Aluminium body for structural strength. 3-stage telescopic rod increases maximum working height up to 685 mm vs 220 mm. Maximum lifting capacity remains 150 kg. Wide plastic platform with removable rubber cover to protect materials from scratches.

Features

• Telescopic design with adjustable working heights from 295 mm to 685 mm* providing flexibility and stability.
• Optimized stability via a lifting plate matching the dimensions of the base plate.
• Maximum load capacity of 150 kg.
• Durable aluminium construction reinforced by high-strength plastic components.
• Tool-free secure attachment using aluminium levers at the base; slides on the bar and locks behind the lifting plate.
• Tool-free height adjustment using aluminium locking pins in 3 positions.
• Surface protection provided by a removable rubber cover on the lifting platform.
• Available as single unit (FMHT83554-1) or in a set of 2 (FMHT83556-1).

Specifications
Product type: Lifting tool
Product material: Aluminium
Country of origin: Taiwan
Barcode: 3253561835544
Single or set: Set

Included

• (1) FMHT83556-1 (set of 2 extensions)

Warranty
Limited 1-year warranty.

Notes
* Maximum working height indicated with the Tradelift™ fully deployed; minimum working height with the Tradelift™ fully lowered.

Technical specifications

• Adjustable working heights: ~295 mm to 685 mm*
• Load capacity: 150 kg
• Main material: Aluminium
• Platform: wide plastic with removable rubber cover
• Attachment: aluminium levers, tool-free installation
• Adjustment: 3-stage telescopic rod, aluminium locking pins
• Origin: Taiwan
• References available: FMHT83554-1 (single), FMHT83556-1 (set of 2)
