Direct thermal receipt printer TSP100IV

desktopBluetoothUSB

Product Summary
The TSP100IV series comprises compact direct-thermal receipt printers for retail and hospitality environments. Available as TSP143IV-UE (wired) and TSP143IV-UEWB (wireless + Bluetooth®). Models feature built-in AC power supply and reduced footprint compared with previous generation.

Highlights

• Stylish & compact design
• Best connectivity for store environments
• Easy setup with mobile utility

Stylish & compact design

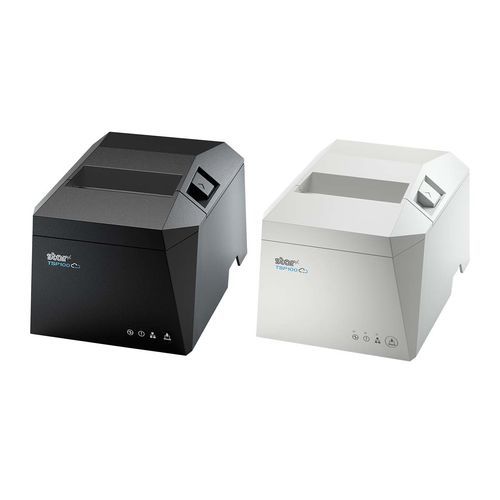

Polygonal housing reduces physical footprint by approximately 20% compared to the TSP100III while retaining the convenient built-in power supply. Available in White and Gray and designed for horizontal or vertical installation (wall-mount holes provided).

Best connectivity for Store Environments
The TSP143IV-UE provides USB and LAN interfaces for reliable wired integration. The TSP143IV-UEWB adds dual-band wireless LAN (2.4GHz/5GHz), Bluetooth® and flexible installation options, eliminating the need for separate inventory of wireless and wired units.

Easy Setup
Setup is simplified using the Star Quick Setup Utility™ (iOS and Android compatible). Wireless LAN configuration can be completed by following on-screen instructions and bringing a mobile device close to the printer. An extensive online manual supports in-store installation.

Supports new cloud printing communication protocols
Includes CloudPRNT® for direct printing from cloud servers. In addition to HTTP, these models support MQTT (firmware ver. 2.2 or later) for faster cloud-to-printer control.

Abundant software development environment
Multiple software options reduce integration time and support diverse host environments:

• StarXpand™ SDK for native app printing
• CloudPRNT™ for cloud-environment printing
• StarIO.Online™ cloud printing via web API through Star Micronics Cloud Services
• StarXpand™ SDK for React Native for cross-platform development

Star Sustainability
Packaging uses plastic-free materials and box volume reduced by ~30% vs previous models to improve transport efficiency. Printers support eco-friendly non-chemical thermal paper while maintaining print performance.

Technical specifications

• Series: TSP100IV
• Model Name: TSP143IV-UEWB, TSP143IV-UE
• Interface: USB-C (PC/Mac), USB-A (Android, up to 1.5A charging and peripheral devices), Ethernet, Cash Drawer Port
• Wireless / Bluetooth: TSP143IV-UEWB — Wireless LAN (2.4GHz/5GHz: IEEE802.11/b/g/n/a/ac/ax) and Bluetooth®; TSP143IV-UE — no wireless/Bluetooth
• Body Color: White, Gray
• Installation: Horizontal, Vertical (wall-mount holes available)
• Printer Method: Direct Thermal Line Printing
• Emulation: StarPRNT™
• Print Speed: Max. 250 mm/sec
• Paper Specification: Thermal Paper Roll
• Print Width: 80 mm, 58 mm (using paper guide)
• Roll Diameter: Max. φ83 mm
• Paper Thickness: 49–85 μm
• Auto-Cutter: Partial cut (leave center point)
• Sensor: Paper End Sensor, Cover Open Sensor
• Power Supply: Built-in power supply 100–240V AC ±10%
• Dimensions (W×D×H): 140 × 169 × 123 mm
• Weight: Approx. 1.3 kg (without paper roll)
• Accessories included: Power supply cable, USB cable (A-C), Roll guide, Rubber feet, Easy Setup Guide
• Options: Melody Speaker (MCS10), Customer Display (SCD222U), Barcode Reader (BCR-POP1)
