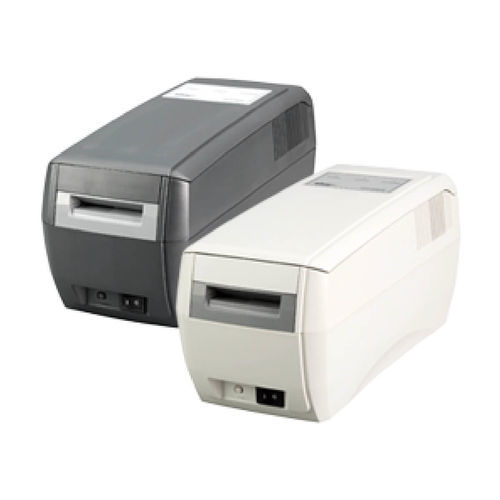

Direct thermal printer TCP series

desktophigh-speed

Product Overview
The TCP300II and TCP400 are rewritable thermal card printers designed for erasing and re-printing on thermochromic and Leuco cards, and for adding marks on one-time thermal cards.

Key points

• Fast erase and re-print cycle
• Multiple interfaces: USB and RS-232C (LAN optional)
• Supports various thermal card types including 760 µm Leuco

Features
Fast erase and re-print
Erases and re-prints Leuco rewritable cards in approximately 3 seconds (TCP300II), enabling high throughput at point of service.
Multiple interfaces
Standard USB and RS-232C interfaces. Optional LAN connectivity available by installing an optional LAN card via cartridge change for networked operation.
Support for thermal card types
Rewritable cards (thermochromic/Leuco): erase and re-print. One-time thermal cards: can add markings such as stamps or validation marks.

Dimensions (mm)
External dimensions: 119(W) × 270.5(D) × 132.5(H) mm. See illustration for detailed measurements.

Specifications (summary)
Model Name: TCP300II / TCP400
Suitable cards: TCP300II: Thermochromic / Leuco / one-time thermal card; TCP400: 760 micron Leuco (blue or black)
Magnetic stripe: Not specified on page
Print method: Thermal
Font: Not specified on page
Interface: Standard: USB, RS-232C; Optional: LAN (by changing cartridge)
Process speed: TCP300II: high 400 mm/sec (magnetic stripe); low 30–60 mm/sec (erase and re-print) | TCP400: high 300 mm/sec (magnetic stripe); low 30 mm/sec (erase and re-print)
External dimensions: 119(W) × 270.5(D) × 132.5(H) mm
Weight: Approx. 2.5 kg
Reliability: Operating temperature 5 to 35°C; Humidity 20 to 80% RH (without condensation)

Other details
Flexibility
Magnetic stripe data capture supported. Shared command set between TCP300II and TCP400 simplifies switching between card types. TCP400 supports full-size re-printing for standard 760 µm Leuco cards. Precise heat control enables complete erasure and clear re-printing.
User-friendly
Includes demo software and supports system integration. Raster driver allows printing from standard applications. Front cover opens with a two-action mechanism for easy maintenance.

Technical specifications

• Model Name: TCP300II / TCP400
• Suitable cards: TCP300II: Thermochromic / Leuco / one-time thermal card; TCP400: 760 micron Leuco (blue or black)
• Magnetic stripe: Not specified on page
• Print method: Thermal
• Font: Not specified on page
• Interface: Standard: USB, RS-232C; Optional: LAN (by changing cartridge)
• Process speed: TCP300II: high 400 mm/sec (magnetic stripe); low 30–60 mm/sec (erase and re-print)
• Process speed: TCP400: high 300 mm/sec (magnetic stripe); low 30 mm/sec (erase and re-print)
• External dimensions: 119(W) × 270.5(D) × 132.5(H) mm
• Weight: Approx. 2.5 kg
• Reliability: Operating temperature 5 to 35°C; Humidity 20 to 80% RH (without condensation)
• Flexibility: Magnetic stripe data capture; shared commands; full-size re-printing for 760 µm Leuco (TCP400)
• User-friendly: Demo software; system integration support; raster driver; two-action cover for maintenance
