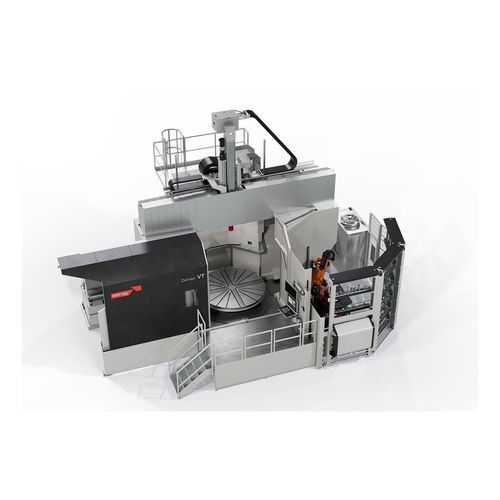

Vertical lathe Dörries VT

hydrostaticsingle-columnhigh-performance

The Dörries VT Series sets a new benchmark for vertical turning. It embodies the robust and durable features of the Dörries VCE series, but has been innovated from the ground up to deliver the latest state-of-the-art technology. Designed for multifunctional, high-precision, and flexible pre- and finish-machining. Technologies - Highest machining quality and durability in turning - Option for complete machining through integration of drilling, milling, or grinding - Meets all specific client requirements at turning diameters from 1,400 to 2,800 mm and turning heights up to 2,650 mm Machining Capabilities - Turning - Drilling - Milling - Grinding - Machining of borings for a planetary carrier with spindle attachment - Machining with an angular milling head Features - High flexibility in production thanks to a large selection of attachment units - Various table and magazine designs - Quality assurance through workpiece and tool measurement - Customised configuration of machines according to customer and application-specific requirements Attachment Units - Turning tool holder - Angular milling head - Universal angular milling head - Grinding spindle Machine Tables - Machine table for jaw boxes - Machine table as hydraulic power chuck - Machine table with magnetic chuck Palletising - Basic palletising with two pallets - Palletising with more than two pallets and a rail guided transport system Magazine - RTM (Robot Tool Magazine) Workpiece & Tool Measurement - Tool measurement - Workpiece measurement Machine Design - Modern design for optimal static and dynamic rigidity - Hydrostatic guideways for market competitiveness - Designed for high-pressure coolant supply up to 350 bar for optimum chip breaking with difficult-to-machine materials - Installation at ground level or recessed - Innovative milling drive concept with masterhead as a compact, universal toolholder solution - Flexible robot tool handling for effective, expandable tool handling - Central layout offers easy access and is optimised for operators and service personnel Advantages - Based on robust and durable features of the Dörries VCE series, but innovated with the latest technology - Designed for multifunctional, high-precision, and flexible pre- and finish-machining Details - Compact single-column vertical turning lathe suitable for turning, drilling, milling, and grinding with additional head attachments - Workpiece dimension: - Diameter: 2,800 mm / 110 inch - Height: 2,650 mm / 104 inch - Weight: 17,000 kg / 37,479 lbs Table Diameter Options - VT 28: Table diameter 2,500 mm - VT 20: Table diameter 1,800 mm - VT 14: Table diameter 1,250 mm Characteristics / Technical Specifications - Turning diameter: 1,400 to 2,800 mm - Turning height: up to 2,650 mm - Workpiece weight: up to 17,000 kg - Attachment units: Turning tool holder, angular milling head, universal angular milling head, grinding spindle - Table types: Jaw boxes, hydraulic power chuck, magnetic chuck - Palletising: Two pallets or more with rail guided transport - Magazine: RTM (Robot Tool Magazine) - Measurement: Tool and workpiece measurement - Coolant supply: Up to 350 bar - Installation: Ground level or recessed - Milling drive: Masterhead concept - Tool handling: Flexible robot system
