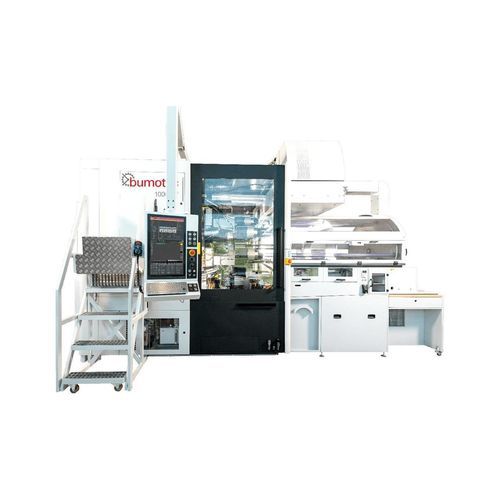

Rotary transfer machine Bumotec 1000/C neo

CNCfor barsautomatic

Tagline
High-precision multi-task transfer center

Overview
The Bumotec 1000/C neo is a horizontal transfer machine designed to produce prismatic parts from round or profiled bar stock. This compact generation reduces footprint by approximately 30%, simplifies production setup and part handling, and improves energy efficiency and cycle times through upgraded ergonomics, HMI and motor technology.

Applications

• Luxury goods: Developed with watchmaking specialists for efficient machining of gold, platinum, titanium, stainless steel and other precious materials.
• Medtech: Suited for orthopedic implants, surgical instruments and dental components.
• Micromechanics & aerospace: Provides precision and robustness for micromechanical and aerospace components.

Machine design - Axis configuration
Stable in production with minimal operator intervention, the 1000/C neo offers high productivity and flexible automation.

• Production from bars or blanks
• Up to 90 tool positions
• Peripherals supported: high-pressure units, chip conveyors and bar feeders

Configuration options (summary)

• R - Counter spindle: Two-position sub-spindle (horizontal and vertical)
• P - Vice: Retaking unit with 1 to 3 positions (option -P/PRM)
• RP - Combined counter spindle: Retaking unit for machining a sixth face (milling only)
• PRM - Vice (multiple secondary operations): Retaking unit with 1 to 3 positions (option -P/PRM)

Features / Point of excellence no. 1
Up to 40% improvement in cycle time depending on the part. Sectioning sequence time: 7 s (-30%). Machining sequence time: 10 s (-51%).

• Electrospindle, max. 25,000 rpm
• Spindles equipped with accelerometer for condition monitoring
• Filtration system designed to operate without machine downtime
• Spindles with power measurement to optimise cutting conditions
• Pickup arms with short-stroke clamps
• XYZ slides with linear guides to increase feed rates
• More rigid HSK32 tool holder

Technical specifications

• Model family: Bumotec 1000/C neo
• Machine type: Horizontal transfer multi-task center for prismatic parts from round or profiled bar stock
• Footprint reduction: approx. 30% vs previous generation
• Cycle time improvement: up to 20% through ergonomics/HMI/motor updates; up to 40% depending on part
• Sectioning sequence time: 7 s (-30%)
• Machining sequence time: 10 s (-51%)
• Electrospindle max. speed: 25,000 rpm
• Tooling capacity: up to 90 tools; tool holder: HSK32
• Spindle monitoring: accelerometer and power measurement
• Motion: XYZ slides with linear guides for increased feed rates
• Workpiece handling: pickup arms with short-stroke clamps; two-position sub-spindle option
• Options/peripherals: high-pressure equipment, chip conveyors, bar stock loaders
