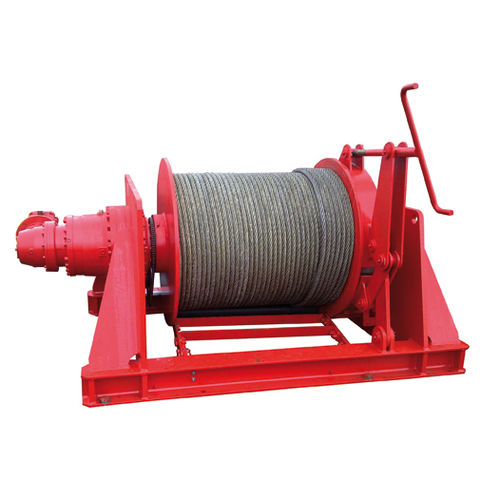

Hydraulic winch ARGOS BMF serieswire ropehaulagemooring
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Type
- wire rope
- Application
- haulage, mooring
- Other characteristics
- compact, gear, planetary
- Capacity
Max.: 16,454.1 kg
(36,275.08 lb)Min.: 2,661.5 kg
(5,867.6 lb)- Speed
9,900 mm/min, 11,600 mm/min
(6.5 in/s, 7.6 in/s)- Cable diameter
Max.: 28 mm
(1.1 in)Min.: 15 mm
(0.59 in)- Cable length
Max.: 575 m
(1886'05" )Min.: 13.7 m
(44'11" )- Weight
Max.: 1,200 kg
(2,645.547 lb)Min.: 400 kg
(881.849 lb)
Description
The mooring winch Argos BMF is particularly compact and suitable for use on bridge.
Indeed this mooring winch has a hydraulic motor and an internal gear to the drum.
A clutch and a band brake enables the winch to carry out mooring operations.
• Mooring application in maritime environment.
• CE, Fem certificate.
• Hydraulic motor.
• Planetary gearbox.
• Bolted frame.
• Compact design with integrated gearbox.
• High wire rope storage capacites.
• Clutch, band brake and pressure roller in standard version.
Catalogs
ARGOS BMF
2 Pages
