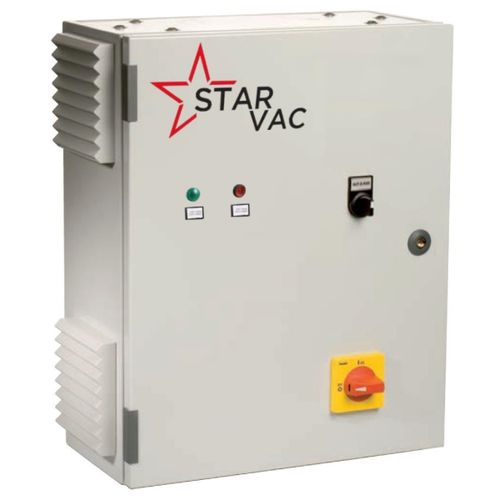

Control panel CAP055

The basic control boxes are plug and play. They include all parts to start and stop the blower remotely by a external start signal. Further to this, the Inverter control box includes a pressure sensor. The inverter than will modulate the motor and try to keep the pre-set vacuum. With SOFT-START This control box includes a soft – starter, which will guarantee a smooth engine start and stop. This enhances the lifetime of the blower and eliminates all current peaks. Please keep in mind, that a Soft-Start control box is not capable to modulate the motor at all. Technical Data Connection Voltage: 380 V Rated Current: 16 A Power: 5.5 kW Connection Frequency: 50 Hz Dimensions: 20Lx30Wx40H Resistance class: IP55 Weight: 9 kg
