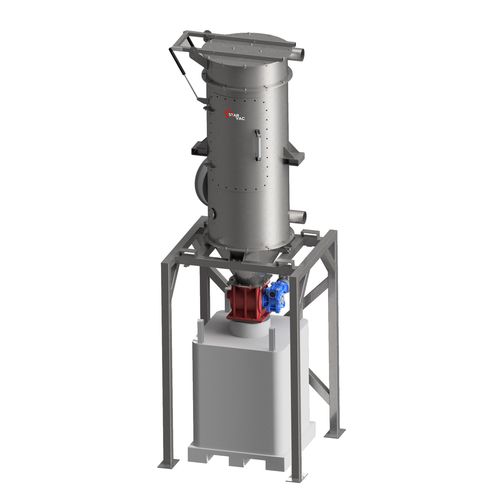

Lubricated vacuum unit SEP201

industrialautomaticvertical

Designed with Computational Fluid Dynamics (CFD), it is projected to consider not only the best filtration performance, but also the user’s work and maintenance service. Front filter access door: Filters can be easily changed by accessing front door on the body or even thru softened top cover Cone door to access dust cone: To reach the internal dust cone, in case of sensors tuning or to unclog / clean the dust cone DCS integration: Execution with Distributed Control System (DCS) integration. Errors and function feedback is sent to DCS by digital contacts Automated discharging valve: To discharge dust automatically into a Big Bag or palletizable container or screw conveyor Explosion vent valve inc. flame arrestor (option) ATEX Backfire prevention valve / flap valve / explosion isolation valve (option): Can reach even ATEX 1/2 D class! Support frame + Junction box for connection with main control box: A small junction box is ready to be connected to the main control box Big Bag filling adapter with Bag level sensor: This sensor emits an alarm when the Big bag is full Dust cone level sensor: This level sensor emits an alarm when the dust cone is full Automatic filter cleaner: Integrated filter cleaner with compressed air inside – all inside the body Differential pressure sensors: To keep steady control of filters’ status Technical features: Suitable for an airflow up to 2.500m³/h Filters: 4 cartridges each 8m², total 32m² Compressed air supply: 4-6bar / 500l/h Max filtration efficiency 99.9% efficient at 1 micron AGW values ≥ 0,1 mg/m3. Tested by German IFA / BGIA Dimensions: 1550 x 1450 x 4250 (H) Total weight including frame 470kg.
