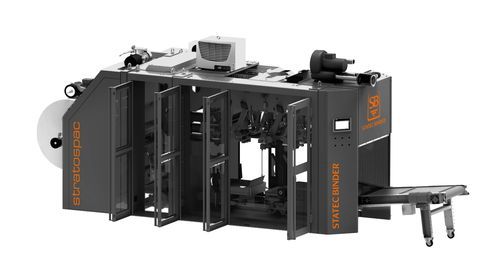

Vertical bagging machine STRATOSPAC

FFSform fill sealfully-automatic

Overview
With the STRATOSPAC, Statec Binder presents an innovative, fully automatic high-speed form-fill-seal (FFS) bagging machine. The STRATOSPAC delivers up to 2,800 bags per hour and is engineered for high productivity, energy efficiency and straightforward operation. It processes PE bags from tubular film and is optimized for petrochemical and similar bulk products.

Process & Technology
The STRATOSPAC integrates automatic forming, filling and sealing in a single machine. Key process steps include: motorized film dispensing; bottom sealing combined with cutting, followed by cooling and pre-opening for filling; automatic filling; even spreading and compaction of the product by a vibrating plate; transport to head sealing where the top seal is cooled by an additional cooling station. The system is configured for precise handling of 20–30 kg bags.

Performance & Benefits
Implemented FFS technology enables a rapid bagging cycle that increases output while reducing operating costs via lower electricity and compressed air consumption. The machine features a maintenance-optimized design and supports data monitoring and operator training through a modern HMI.

At a glance

• Optimized for petrochemical and similar bulk products
• Designed for a filling weight of 20–30 kg
• Energy-efficient in electricity and compressed air
• Reliable, maintenance-optimized design
• Ergonomic and easy handling
• Modern, simple HMI layout
• Data monitoring and training support
• Use of unbranded spare parts freely available on the market
• All-in-One integration possible with STRATOSPAL palletizer

Powerful and efficient
The STRATOSPAC achieves packaging speeds up to 2,800 bags per hour and is particularly suited to products with good flow characteristics. An optional automatic reel change supports continuous high output for high-performance applications.

Energy-efficient and cost-saving
The STRATOSPAC reduces energy consumption (electricity and compressed air) compared to conventional packaging machines, positively affecting operating costs and environmental footprint.

Flexible packaging solutions
Engineered for 20–30 kg bags, the STRATOSPAC includes integrated cooling stations for top and bottom seams to enable faster processing and optimized bag handling.

Maximum flexibility in use
Optionally available as a movable version on a freely moveable platform for multi-silo handling, enabling flexible relocation between silos.

State-of-the-art control and maintenance
The HMI provides diagnostic tools for continuous monitoring of machine status. The design facilitates easy maintenance to minimize downtime.

The Options

• Automatic reel change
• Moveable platform for multi-silo handling
• Corner sealing unit
• Stainless steel execution
• Washing & drying modules

The Advantages

• High speed
• Lower operating costs
• Optimized footprint
• Increased productivity
• Reduced personnel costs
• Durable equipment
• High reliability

Technical specifications

• Machine type: Fully automatic high-speed Form-Fill-Seal (FFS) bagging machine
• Maximum capacity: up to 2,800 bags per hour
• Designed filling weight: 20–30 kg per bag
• Bag material: PE bags manufactured from tubular film
• Film handling: Motorized film dispenser; optional automatic reel change
• Sealing: Bottom and top sealing with dedicated cooling stations
• Post-fill handling: Vibrating plate for even spreading and compaction
• Control: Modern HMI with diagnostic tools and data monitoring
• Design: Maintenance-optimized, energy-efficient in electricity and compressed air
• Compatibility: Integrable as All-in-One system with STRATOSPAL palletizer
• Options: Moveable platform for multi-silo use, corner sealing, stainless steel execution, washing & drying
• Spare parts: Use of unbranded spare parts freely available on the market
