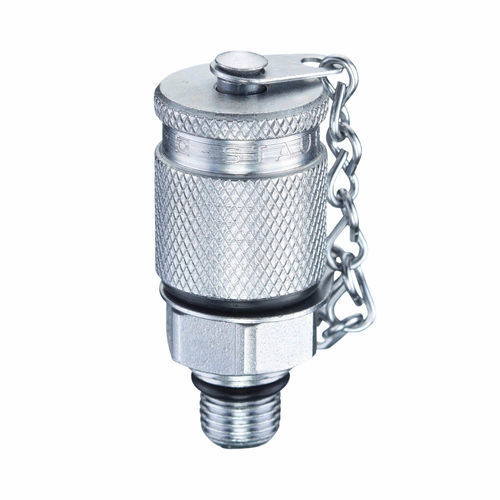

Hydraulic test point SKK-20-1/2UNF-B-E-W3

Product overview
Test coupling STAUFF Test 20 with port connection. Thread 1/2-20 UNF. Self-locking metal protective cap. NBR (nitrile) seal. Protective cap made of steel with zinc-nickel plating. Images for illustration purposes only.

Bill of materials (individual components of the kit)

• SKP-SMK-20-W3 — Coupling Cap To Suit SMK Test 20, Steel Zinc/Nickel-Plated — Material No. 1220026105 — Required quantity: 1 piece
• O-Ring-13x2.5-B70 — O-Ring (13 x 2.5) — Material No. 1230000985 — Required quantity: 1 piece

Additional product information

• STAUFF Material No.: 1210026707
• Product name / designation: SKK-20-1/2UNF-B-E-W3
• Quantity unit: pieces

Technical characteristics / specifications

• Thread: 1/2-20 UNF
• Seal material: Nitrile (NBR)
• Seal type: O-Ring Type E
• Material of protective cap: Steel
• Design: With poppet valve
• Gross weight: 0.071 kg
• Country of origin: Germany
• Customs tariff number: 84812010
• Packaging unit: 25 pieces
