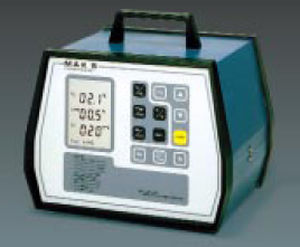

CO analyzer Max 5

fuelmonitoringemissions

Teledyne Analytical Instruments Reduce Fuel Usage and Emissions Enter the type of fuel being burned and the Max 5 automatically calculates net combustion efficiency. This makes it easy to correctly and precisely adjust combustion, leading to minimizing fuel use and saving money. In addition, improved efficiency reduces unwanted exhaust emissions Compu-Cents™ With the Compu-Cents feature, the Max 5 can display the amount of money saved as parameters change and efficiency improves. By entering the price of fuel, the unit calculates the dollar value of the improved fuel consumption rate. Maintenance Free Sensors The Teledyne sensors used in the Max 5 are field proven, reliable and durable. The patented Micro-Fuel cell measures O2, and a similar electrochemical sensor is used to measure CO. Total combustibles are monitored with a low temperature catalytic bead sensor. Only periodic calibration is required to assure accurate performance. Calibration of the O2 sensor is automatically accomplished with the touch of a button. No zero or span gases are required. The Max 5 also includes pushbutton auto zero for CO and combustibles, leaving only the span to be set. And calibration settings remain in memory even when the power is off. Portable and Self Contained The Max 5 comes complete with a sample probe which includes a linearized Type K thermocouple for temperature measurement between 32° - 2192°F (0°-1200°C). A rugged sampling pump in the unit pulls gas through the sample probe, while a coalescing filter and scrubber remove condensables and corrosives.
