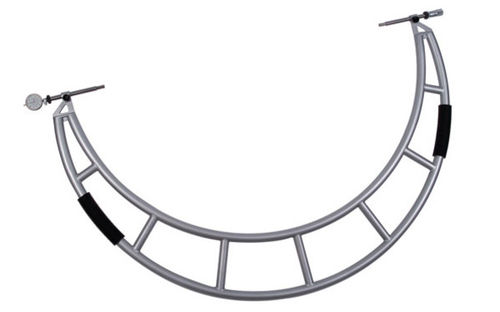

Outside micrometer 220 series

large-diameteranalog

With measuring gauge and micrometer particularly suited for measuring thicknesses and lengths with large measuring ranges of up to 6m. Technical data • Error limit up to 500 mm according to DIN 863-3 • Graduation 0,01 mm • Sindle pitch 1,0 mm • Measuring range 25 mm • Thimble diameter 25 mm • Movable range anvil 100 / 250 / 500 mm • Masuring surface diameter 8 mm / 12 mm / 16 mm Benefits • With extra large measuring faces of up to 16 mm for secure measuring • Movable anvil up to 500 mm for wide application ranges • Large application range up to 6000 mm • For better handling with individual centring aids • For easier reading even with additional display PU 7d (for digital micrometer head) Application • to measure precision components for dimensions up to 6000 mm • for large scale components such as shafts or machine bases
