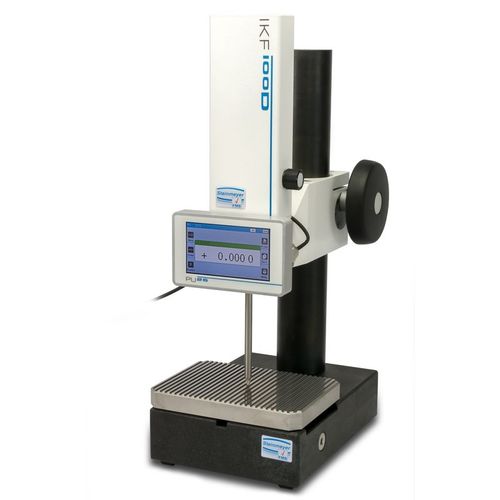

Measurement touch probe IKF 100D

opticaldigitalcompact

For checking and calibrating of: • Production normals • Pin gauges • Plug gauges • Workpieces • Threaded plug gauges Technical data • Application range / path 103 mm; 0-4 inch • Resolution 0,01 µm • Clamping shaft 28H6 • Protection degree IP40 • Measuring force 1 ,8 N • System accuracy 0,3 µm • Permissible shear force 2 N • Power supply 5 V DC, Mini USB • Operating position vertical • Weight 2.600 g Benefits • High-precision measuring results by resolution 0,01 µm • High repeatability, operator independent by constant measuring force • Measuring objects up to 100 mm can be measured • Compact vertical measuring system with integrated display unit PU26 • Ideal for use in production hall • Measuring data can be processed with interface on the PU26 • Exchangeable measuring tips with M2,5
