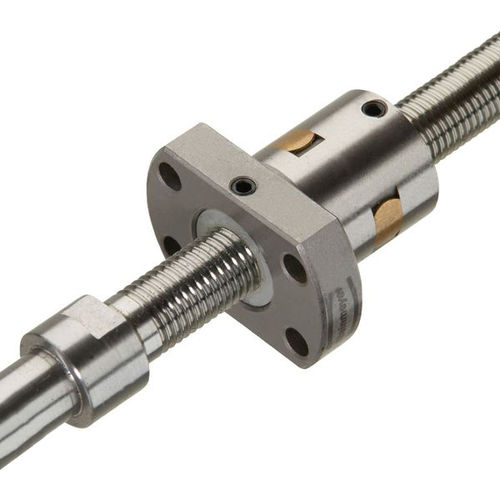

Stainless steel ball screw 1412precisionhigh-rigidityhigh-efficiency
Add to favorites
Compare this product
Characteristics
- Material
- stainless steel
- Performance
- precision, high-rigidity, high-efficiency, high-performance, zero-backlash, for heavy loads, low-noise, high-power, high moving speeds
- Type
- ground
- Other characteristics
- compact, recirculating, custom, miniature, with trunnion, with support, ultra-compact
- Diameter
Max.: 16 mm
(1 in)Min.: 3 mm
(0 in)- Load rating
Max.: 10.1 kN
Min.: 0.09 kN
Description
Precision ball screw with flange single nut 1412
Customer-specific configurable
- Precise for high loads with travels up to 800 mm
- Flanged single nut with 4-point contact
- Standard plastic wipers on both sides
Specifications
- Stroke: 20 - 800 mm
- Pitch: 0.5 - 5 mm
- Nominal diameter: 3 - 16 mm
- Dynamic load capacity: 0.09 - 10.10 kN
- Friction torque: 1.0 - 4.0 Ncm
Custom options:
- Customization of geometry, journal, material design
- Preload / Backlash: Axial Backlash, Radial Backlash, Preload, Backlash Free
- Accuracies: Spindle thread single thread ground up to ISO tolerance class 1
- Adaptation to environmental conditions e.g. clean room, non-magnetic, low temperature, vacuum
- Lubrication: Special lubrication, lubricant-free, special wipers
- Further assembly to spindle with motor
