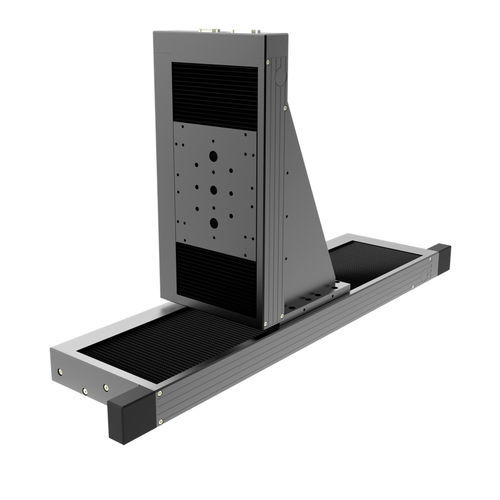

3-axis positioning system 782300:186.26
XZlinearfor wafer inspection and metrology

3-axis positioning system
3-axis positioning system
3-axis positioning system
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis, XZ
Features
linear
Applications
for wafer inspection and metrology
Other characteristics
combined modules, with DC motor, high-resolution, ball screw, with controller

Description

XZ System for Laboratory and Wafer Inspection | Ball Screw, DC Motor, Cross Roller, Linear Measuring System High precision and modular 3-axis system The XZ combination consists of the high-precision and durable standard linear axes of the PMT160. This combination is suitable for all applications requiring perfect flatness, smallest tolerances for pitch and yaw, and smooth running behavior. The XZ system is ready to use with controller as well as software and operates with reliable parameters. Flexible, instantly operational and tested · Ideal for setting up and expanding of your application · Highly precise repeatability up to 0.4 µm · Smallest steps and highest reliability at comparatively high positioning speed of 50 mm/s · Perfect flatness of ± 1 for positioning medium loads up to 5 kg Optional expandable: · Different travels per axis from 50 - 300 mm · Rotational movements in combination with DT130 or DT200 · Various motor variants: DC motor, stepper motor, linear motor and nanomotion · Immediate use with pre-configured controller incl. exemplary software · Versions for clean room ISO 14644-1
