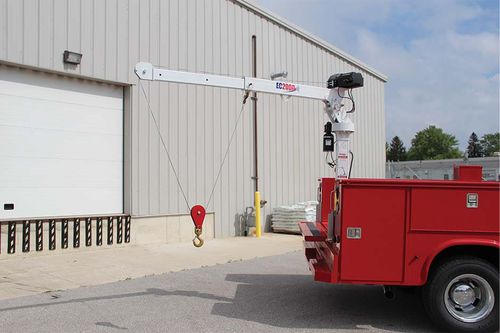

Electric crane EC2000

truck-mountedboomfor construction

Stellar® EC2000 Electric Service Cranes combine the lifting power you need with the economy you want. You’ll handle a wide range of lifting needs, and you won’t have to spend valuable time and money refueling. Because the EC2000 doesn’t require a PTO and pump, operation is significantly quieter than hydraulic cranes so you can work at times and in locations where reduced noise is essential EC2000 Includes: • Ball Bearing Rotation Gear for solid support and smooth operation • Steel Worm Gear for reliable speed control when rotating the shaft, available on powered rotation models • Planetary Winch that lifts the maximum crane load and offers the smoothest and fastest speeds in the market today for maximum productivity • Low-Profile Design for superior clearance • Integral Rotation Stop with 340° manual rotation or 310° powered • Certification for ANSI B30.5 and OSHA 1910.180 specifications • Tall or Short Masts • Powered Rotation or Manual Rotation Specifications Crane Rating: : 6,500 ft-lbs (0.99 tm) Standard Boom Length: : 4' (1.22 m) from CL of crane Boom Extension: • 1st Stage: • 2st Stage: : Manual 18" (45.72 cm) Manual 18" (45.72 cm) Maximum Horizontal Reach: : 7' (2.13 m) from CL of crane Maximum Vertical Lift: : 10' 9" (3.28 m) from crane base Lifting Capacity: : 1,580 lbs @ 4' (715 kg @ 1.219 m) 930 lbs @ 7' (422 kg @ 2.13 m) Boom Elevation: : 0° to +21° to +56° Stowed Height (crane only): : 60" (152.4 cm) Short mast version 30" (76.2 cm) Mounting Space Required: : 12" x 12" (30.5 x 30.5 cm) Approximate Crane Weight: : 275 - 300 lbs (124.7 - 136.1 kg) Controls: : Tethered remote Winch: • Rope Diameter: • Rope Length: • Line Pull Speed: : 3/16" (0.48 cm)
