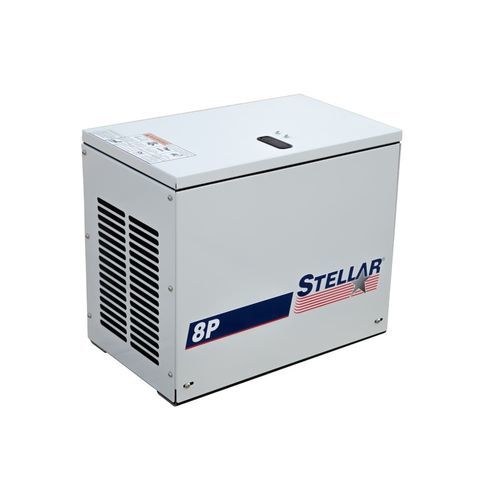

Piston compressor 8P

reciprocatingairon casters

Offering lighter weight and a smaller footprint than other air compressor assemblies, the Stellar® 8P Single-Stage Piston Air Compressor provides the air you need to get the job done. Durability Standard • Direct drive; no belts to break or adjust • Cast-iron crankcase and cylinder heads for durability • High-temperature, precision-ground 4-ring pistons for consistent performance • Stainless-steel reed valves for long life and heat resistance • Heavy-ductile iron-balanced crankshaft with heavy-duty journal bushings • Micro-honed connecting rods for smooth operation and long life • All single-stage hydraulic-driven units include a reciprocating pump Ease of Use • Canister-type air filters for high capacity and easy changing • High-capacity hydraulic oil cooler and fan for cooler operation • Flip-up lid for easy access SPECIFICATIONS Output Capacity: : 8 cfm @ 100 psi Hydraulic Req: : 7 gpm @ 1,800 psi Cylinders: : 2-cylinder, single-stage Max Pressure: : 150 psi Weight: : 130 lbs Dimensions: : 23.06"L x 14.13"W x 16.69" H Uses model 143 pump : Embedded air filter :
