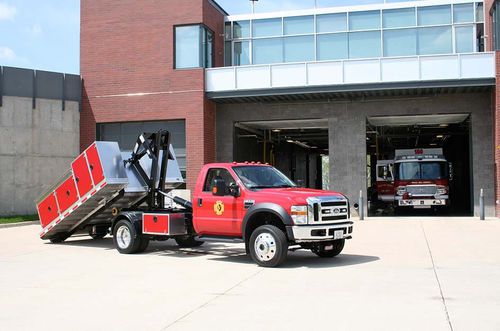

Truck hook lift Shuttle16

swing-arm

No other hooklift manufacturer currently offers the flexibility of the Stellar® Shuttle16. The Shuttle16 can handle dump containers ranging from 8′ to 15′ and flatbeds ranging from 10′ to 16′ and has a lifting capacity of up to 16,000 lbs. It has a maximum dump angle of 50˚ to 54˚, depending on the length of body. The Shuttle16 maintains all of Stellar’s efficient operational and mechanical features such as the in-cab controls and body locks to ensure stability and secure attachment. All Stellar Hooklifts feature permanently lubricated greaseable bushings, zinc-plated pins and an efficient low-flow, high-pressure hydraulic system. Additional Information • Will accommodate bodies from 8′ up to 15′ long and still retain the maximum rated dump angle on a 41″-high frame truck. Longer bodies may be accommodated with reduced dumping capabilities. • Transmission-mounted PTO and hydraulic pump required to power the hooklift. • Standard in-cab manual controls that allow for metering of the manual hydraulic valve. • 10-gallon-capacity, frame-mounted oil reservoir. • Maximum hydraulic flow is 16 gallons per minute. • Patented dump/load interface. • Counterbalance valves to prevent cylinder movement in case of pressure loss. • Mechanical rear-body tiedown latches. • Resettable dump/tilt tabs. • Hydraulic plunger valve to prevent front tilt movement when the dump frame is raised. • Permanently lubricated and greaseable bushings used throughout. • Grease zerks at all pinpoints to allow purging of contaminants. • Carbon steel and zinc-plated or type 17-4 stainless-steel pins used throughout. • All weldments painted with two-part polyurethane enamel.
