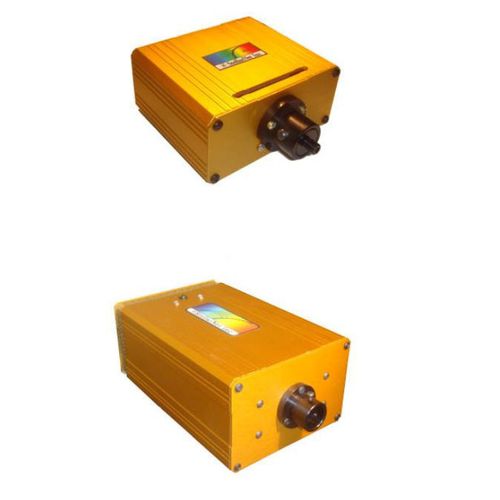

Deuterium lamp light source SL1 +SL3 tungsten halogen lampvisibleNIR
Add to favorites
Compare this product
Characteristics
- Illumination technology
- deuterium lamp, tungsten halogen lamp
- Spectrum
- visible, NIR, UV
- Other characteristics
- high-power
- Technical applications
- for fiber optics
- Wavelength
Max.: 2,300 nm
Min.: 200 nm
Description
The high power SL1-Filter Halogen lamp and the SL3 Deuterium lamp with DCX lens installed can easily be coupled with a fiber optic Y-bundled fiber to provide high output, stable UV-VIS-NIR light, 200-2300nm, with long bulb lifetime
The F400-YBNIRUV-SR is an armored 400um fiber optic Y cable bundle that is 0.5 meter, solarization resistant, and is specially designed to connect the SL1 and SL3 lamps
D-alpha line (654nm) eliminated in deuterium source by adding a U330 filter to the nosecone of the SL3 light source
**Note- this product is recommended for applications that require high output power (e.g. reflectance) and do not require demanding portability or size characteristics. Bulb life and robust design are the the main advantages over SL4
