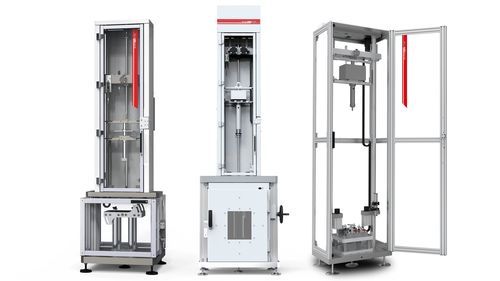

Packaging drop tester DW series

Overview
At STEP Lab, a range of drop weight impact testing machines is offered to perform single and multiple axial impact tests on standardized products and specimens. Systems cover impact energies from 0.2 to 2000 J, provide large sample placement volumes and are compatible with a wide set of accessories including load cells, anti-rebound systems, spring accelerators, instrumented impactors and specimen holders.

Features

• Max. energy up to 2000 J
• Ease of use with an intuitive user interface
• High safety: door locks activated when machine is reset
• Pneumatic drop weight release system
• Automated weight lifting and positioning / automated impactor recovery
• Variable drop height
• Impact speed up to 5.0 m/s (up to 20 m/s with spring preloading or acceleration system)
• Set of standard drop weights: from 0.5 to 10 kg (total 70 kg standard set)
• Acquisition of impact velocity at up to 200 kHz
• Force signal acquisition rate up to 10 MHz
• Rapid changeover between ISO and ASTM test equipment
• Wide variety of grips and dedicated test accessories
• Integration with both strain gauge and piezoelectric load cells
• High reliability, modular structure for diverse applications

Type of test

• Impact
• Puncture

Applications

• Materials
• Components

Impact testers (DW series)
DW series machines cover an expansive impact energy range from 0.2 J to 2000 J and are designed for versatile product and material testing. A range of accessory fixtures and instrumented impactors are available for puncture resistance, tensile impact, wedge peel and other impact methods.

Technical data (DW series)
DW SERIES | DW750 | DW1000 | DW2000
Available with climatic chamber — DW750: - ; DW1000: ✓ ; DW2000: ✓
Speed measurement — DW750: with high speed optical sensor ; DW1000: with high speed optical sensor ; DW2000: with high speed optical sensor
Acquisition sampling & resolution (load signal) — DW750: from 50 kHz to 100 kHz @ 24 bit / from 250 kHz to 14 MHz @ 16 bit ; DW1000: from 50 kHz to 100 kHz @ 24 bit / from 250 kHz to 14 MHz @ 16 bit ; DW2000: from 50 kHz to 100 kHz @ 24 bit / from 250 kHz to 14 MHz @ 16 bit
Test area (WxD) — DW750: 400 x 400 mm ; DW1000: 690 x 690 mm ; DW2000: 690 x 690 mm
Min. fall height — all models: 0.04 m
Max. fall height — all models: 1.40 m
Max. fall weight — DW750: 55 kg ; DW1000: 70 kg ; DW2000: 70 kg
Max. impact velocity without acceleration — all models: 5.2 m/s
Max. fall weight with acceleration — DW750: - ; DW1000: 20 kg ; DW2000: 40 kg
Max. impact velocity with acceleration system — DW750: - ; DW1000: 20 m/s ; DW2000: 20 m/s
Max. impact energy — DW750: 750 J ; DW1000: 1000 J ; DW2000: 2000 J
Installation: Compressed air — all models: 6 - 8 bar
Machine dimensions (WxDxH) — DW750: 780 x 600 x 2500 mm ; DW1000: 800 x 1400 x 3500 mm ; DW2000: 800 x 1400 x 3500 mm
Machine weight — DW750: 600 kg ; DW1000: 950 kg ; DW2000: 1400 kg

Impact testing methods

• Puncture resistance test
• Compression After Impact (CAI) test
• Tensile impact test
• 3-point bending test
• Wedge peel impact test

Notes on accessories & options
Available accessories include climatic chambers (for selected models), dedicated supports, masses, fixtures and specially designed accessories for puncture, tensile impact, wedge peel, compression and component tests. Acceleration/spring preloading modules are available as add-ons for higher impact velocities (noted for DW1000 and DW2000).

Technical specifications

• Impact energy range: 0.2 J to 2000 J
• Max impact energy per model: DW750 = 750 J, DW1000 = 1000 J, DW2000 = 2000 J
• Impact speed: up to 5.0 m/s (up to 20 m/s with acceleration/preload)
• Standard drop weights set: 0.5–10 kg (standard set total 70 kg)
• Velocity acquisition: up to 200 kHz
• Force acquisition: up to 10 MHz (with selectable sampling/resolution ranges)
• Test area: 400x400 mm (DW750) or 690x690 mm (DW1000/DW2000)
• Fall height: min 0.04 m — max 1.40 m
• Compressed air: 6–8 bar (installation requirement)
• Machine dimensions (example): DW750 = 780x600x2500 mm; DW1000/DW2000 = 800x1400x3500 mm
• Machine weight (example): DW750 = 600 kg; DW1000 = 950 kg; DW2000 = 1400 kg
• Acceleration system: available as add-on for DW1000 and DW2000
