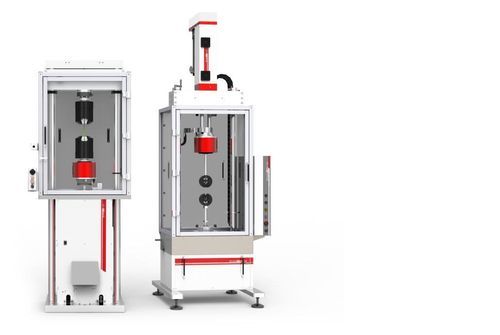

Torsion testing machine BV series

torquefatiguePC-controllable

Product overview
Designed for combined axial and torsional loading, the BV series delivers comprehensive mechanical characterization of materials and components. Available in a wide range of load capacities, with torque up to 230 Nm, these axial-torsion systems combine a compact, rigid layout with the flexibility to integrate a full range of actuators (EA and UD).

Features

• Max. Torque: 230 Nm
• Control of two or more synchronised electromechanical axes
• Integrated absolute rotary encoder
• High-resolution 24-bit data acquisition
• Remote control capability
• Separate, independent control station
• Graphical Test Center interface for simple, flexible test management
• Wide range of grips, dedicated accessories and load cells
• Integration with strain gauges and climatic chambers

Test types

• Axial-Torsion (combined)
• Static
• Dynamic (including torsional fatigue and combined-load fatigue)

Applications

• Materials testing (metals, plastics, polymers — torsional fatigue and failure analysis)
• Biomedical (implants, bone and soft tissue mechanical characterisation, surgical instrument testing, implants/wires/screws)
• Automotive (driveshafts, rubber components, fasteners, suspension parts — fatigue testing)
• Aerospace (composite materials, structural components, combined-load fatigue analysis)

BV series - model overview (Metric)
BV Series | BV020 | BV035 | BV060 | BV080 | BV100 | BV170 | BV230
Continuous torque | 15 Nm | 25 Nm | 45 Nm | 55 Nm | 80 Nm | 135 Nm | 160 Nm
Dynamic torque (sinusoidal fatigue) | 20 Nm | 35 Nm | 60 Nm | 80 Nm | 100 Nm | 170 Nm | 230 Nm
Test speed | 350 rpm | 350 rpm | 200 rpm | 150 rpm | 200 rpm | 200 rpm | 100 rpm
Static axial load (max. admissible) * | 15 kN | 50 kN | 50 kN | 50 kN | 50 kN | 50 kN | 50 kN
Dynamic axial load (max. admissible) * | 10.5 kN | 35 kN | 35 kN | 35 kN | 35 kN | 35 kN | 35 kN
Cooling | Air | Air | Air | Air | Air | Water closed circuit | Water closed circuit
Max. number of revolutions | ±10000 * (applies across models)
Rotational absolute encoder | Integrated (all models)

BV series - model overview (Imperial)
BV Series | BV020 | BV035 | BV060 | BV080 | BV100 | BV170 | BV230
Continuous torque | 132.76 lbf·in | 221.27 lbf·in | 398.28 lbf·in | 486.79 lbf·in | 708.06 lbf·in | 1194.85 lbf·in | 1416.12 lbf·in
Dynamic torque (sinusoidal fatigue) | 177.01 lbf·in | 309.78 lbf·in | 531.04 lbf·in | 708.06 lbf·in | 885.07 lbf·in | 1504.63 lbf·in | 2035.67 lbf·in
Test speed | 350 rpm | 350 rpm | 200 rpm | 150 rpm | 200 rpm | 200 rpm | 100 rpm
Static axial load (max. admissible) * | 3372.13 lbf | 11240.45 lbf | 11240.45 lbf | 11240.45 lbf | 11240.45 lbf | 11240.45 lbf | 11240.45 lbf
Dynamic axial load (max. admissible) * | 2360.49 lbf | 7868.31 lbf | 7868.31 lbf | 7868.31 lbf | 7868.31 lbf | 7868.31 lbf | 7868.31 lbf
Cooling | Air | Air | Air | Air | Air | Water closed circuit | Water closed circuit
Max. number of revolutions | ±10000 * (applies across models)
Rotational absolute encoder | Integrated (all models)

Notes
* Higher values on request

Specifications

• Max. dynamic torque: 230 Nm
• Max. test speed: up to 350 rpm (model dependent)
• Max. admissible static axial load: up to 50 kN (model dependent)
• Max. admissible dynamic axial load: up to 35 kN (model dependent)
• Continuous torque range across models: 15 Nm to 160 Nm
• Dynamic (fatigue) torque range across models: 20 Nm to 230 Nm
• Cooling: air (smaller models) or closed-circuit water (larger models)
• Max. number of revolutions: ±10000 (typical, higher values on request)
• Integrated rotational absolute encoder
• High-resolution 24-bit data acquisition and test management via graphical Test Center interface
• Compatible with climatic chambers, strain gauges, wide range of grips and accessories
