Tensile testing machine

fatigueother test typesmultiaxial fatigue

Overview
Discover our planar biaxial cruciform testing systems, designed for advanced material testing. With precision engineering and cutting-edge technology, these systems excel in evaluating materials under tensile, fatigue and fracture conditions, providing reliable and accurate results.

Applications

• Two-axis tensile testing
• Low-cycle fatigue (LCF)
• High-cycle fatigue (HCF)
• Thermo-mechanical fatigue (TMF)
• Fracture testing

Design & Architecture

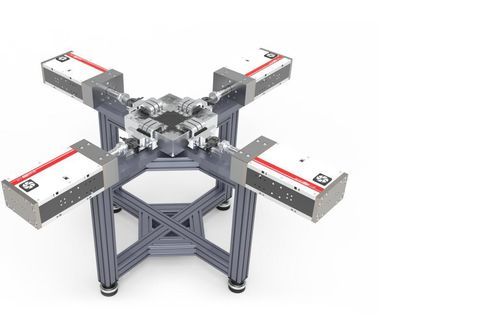

The systems are built around a high-stiffness annular load frame and employ four actuators arranged in a cruciform configuration to deliver precise biaxial loading. The bench supports synchronized multi-axis control for complex loading waveforms.

Control Software
Test Center software ensures synchronized operation across all axes and provides waveform generation, calibration, PC integration and performance monitoring capabilities.

Variants
Two main variants are available:

• UD (electrodynamic): electrodynamic variant suitable for high-frequency/dynamic testing and high accelerations.
• EA (electromechanical): electromechanical variant optimized for versatility in multi-actuator applications and higher static/dynamic loads.

Actuators — Key Characteristics

• Linear motor (electrodynamic) actuators: suitable for tests requiring accelerations of tens of g, frequencies up to ~500 Hz, continuous loads around 100 kN with peaks up to ~120 kN.
• Electromechanical actuators: suitable for tests with accelerations up to ~2 g and dynamic loads up to ~200 kN; versatile for multi-actuator systems.

Features

• High reliability
• High efficiency
• No maintenance (design goal)
• Wide range of use
• Simple installation

Notes
The cruciform test bench can be configured with either electromechanical or electrodynamic actuators depending on application-specific requirements and test profiles.

Technical specifications

• Maximum system test capacity: up to 200 kN (application-dependent)
• High-stiffness annular load frame with four-actuator cruciform arrangement
• Supported test types: two-axis tensile, LCF, HCF, TMF, fracture
• Control: Test Center software — synchronized multi-axis control, waveform generation, calibration and monitoring
• Variants: UD series (electrodynamic) and EA series (electromechanical)
• Linear motor actuator performance (UD): accelerations of tens of g; frequencies up to ~500 Hz; continuous loads ~100 kN; peak loads up to ~120 kN
• Electromechanical actuator performance (EA): accelerations up to ~2 g; dynamic loads up to ~200 kN
• Designed for high reliability, efficiency and wide application range
