Endurance testing machine ST series

performancepowermechanical

Product overview

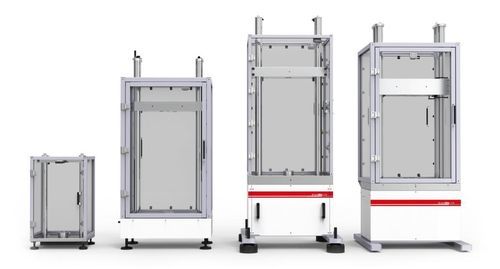

STEP Lab load structures are designed to accommodate a wide range of mechanical load configurations, from simple static testing to more complex endurance tests. Engineered for high rigidity, seamless integration and long service life, STEP Lab’s modular frame solutions offer the performance and flexibility needed by testing laboratories to adapt to changing testing requirements.

Standard configurations

• ST05
• ST015T (Table)
• ST015F (Floor)
• ST100

Notes
Modular frames can be customised according to specific testing requirements and can be adapted in every aspect (frame type, crosshead, safety handles, electrical panel position, etc.).

Configuration example — ST015 – Load structure
Frame type

• B – Bench-type machine
• F – Floor-type machine

Crosshead regulation

• M – Manual crosshead regulation (crank on top)
• L – Manual crosshead regulation (lateral crank)
• E – Electrical crosshead regulation

Electrical panel position

• A – Hanging electrical panel (only for actuators with power 3A and 6A)
• F – Floor-mounted electrical panel

Crosshead locking sensors

• N – No crosshead locking sensors
• Y – Crosshead with locking sensors

Safety fence handle type

• B – Normal bridge handle
• L – Lighted handle
• I – Interlocked lighted handle

Safety fence handle position

• R – Right-side door handle
• L – Left-side door handle

Removable back panel for rear access

• F – Fixed panel
• R – Removable panel

Safety fence

• N – No safety fence
• Y – With safety fence

Crosshead predisposition and size

• SEA005 – For EA05, Crosshead with thickness 89 mm
• SEA050 – For EA050, Crosshead with thickness 89 mm
• LEA050 – For EA050, Crosshead with thickness 150 mm

Features / technical specifications

• High rigidity modular frame solutions for static and endurance testing
• Designed for seamless integration with testing machines and laboratory equipment
• Long service life and modularity to adapt to changing testing requirements
• Multiple standard configurations (ST05, ST015T, ST015F, ST100) and fully customisable options
• Frame types: bench-type (B) or floor-type (F)
• Crosshead regulation: manual (top or lateral crank) or electrical (M, L, E)
• Electrical panel positions: hanging (A) or floor-mounted (F)
• Safety and access options: safety fence presence, handle types (normal, lighted, interlocked), removable rear panels
• Crosshead sizes/predispositions available for different actuator series (examples: SEA005, SEA050, LEA050)
• Suitable for testing laboratories requiring configurable structures for various mechanical load configurations
