DATA VIEWER is software for managing and processing data acquired during mechanical tests. It integrates with TestCenter and DropTest to apply mathematical operations, organise and visualise signals, export results and generate reports from data recorded in real time.

Key functions

• Management and processing of mechanical test data recorded in real time.
• Integration with TestCenter and DropTest for immediate or deferred analysis.
• Automatic import of recorded test data with extraction of channels and properties from TDMS files.
• Application of mathematical operations to acquired signals and creation of customised case studies.

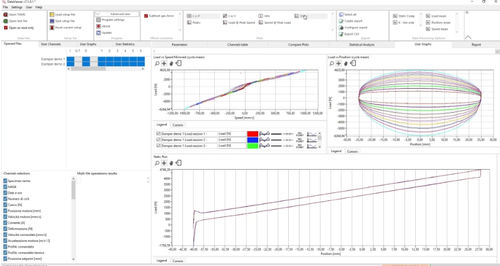

• Generation of graphs and tables to describe tests (examples: Load‑Position, Load‑Speed).
• Export of results and reports in PDF and Excel formats.
• Evidence management workflow with direct switch to the Viewer for rapid post‑test analysis.

Video tutorials / Learning

• Use of test models (example: shock absorbers — run calculation procedures, generate report data, visualise Load‑Position and Load‑Speed curves).
• Software overview (Data Viewer commands, creating/editing/programming configuration files, exporting configurations).
• Channel configuration (how to configure acquisition channels and extract properties from data files).
• Graph configuration (adding channels, extracting properties from TDMS files).
• Top bar configuration and working with parameters.

Highlights

• Accuracy in signal processing
• Synchronised acquisition and visualisation
• Streamlined user workflow for post‑test operations
• Versatility across test types and outputs

Brochure
Brochure(s) in PDF format are available for download from the product page.

Technical specifications

• Integrates with: TestCenter and DropTest.
• Data import: automatic import of recorded test data (supports extracting channels/properties from TDMS files).
• Processing: apply mathematical operations, create customised case studies.
• Visualisation: generate graphs and tables (examples: Load‑Position, Load‑Speed).
• Export formats: PDF and Excel for reports and data.
• Workflow: evidence management with immediate switch to Viewer for post‑test operations.
• Learning resources: multiple video tutorials covering use cases and configuration.
