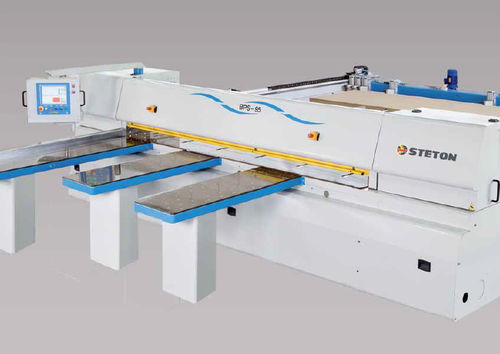

Panel saw BPS 95
woodhorizontalCNC

panel saw
panel saw
panel saw
panel saw
panel saw
panel saw
Add to favorites
Compare this product

Characteristics

Technology
panel
Treated material
wood
Other characteristics
horizontal, CNC, automatic
Circular saw blade diameter

350 mm (14 in)

Description

STANDARD EQUIPMENT: > MAX. CUTTING DEPTH 80 mm > MAIN SAWBLADE DIA. 350mm, MOTOR HP 15 > SCORING BLADE DIA. 180mm, MOTOR HP 2 > *EASY-FIX* SYSTEM FOR QUICK REPLACEMENT OF MAIN AND SCORING BLADE (AKE patent) > BLADE CARRIAGE FEEDING WITH RACH AND PINION SYSTEM > ELECTRONIC BLADE FEED SPEED VARIATOR (from 1 to 60 m/min, feed back at 60 m/min) > AUTOMATIC PUSHER WITH ELECTRONIC SPEED CONTROL (slow forward 0.4 m/min, quick forward 25 m/min - limit fixed by EC-regulation - feed back 60 m/min) > TOP-GUIDED PUSHER, DRIVEN BY INVERTER > PUSHER DISPLACEMENT WITH RACK AND PINION SYSTEM > N.5 DOUBLE ACTING PNEUMATIC GRIPPERS > WORKING SURFACE IN PUSHER AREA WITH IDLE ANTI- SCRATCH WHEELS FITTED ON ALU. PROFILES > SINGLE-SIDE AUTOMATIC ALIGNER FOR CROSSCUT MIN/MAX. STROKE 70/1400 mm > FRONT SIDE FENCE 2000mm > N.3 AIR FLOATATION FRONT TABLES
