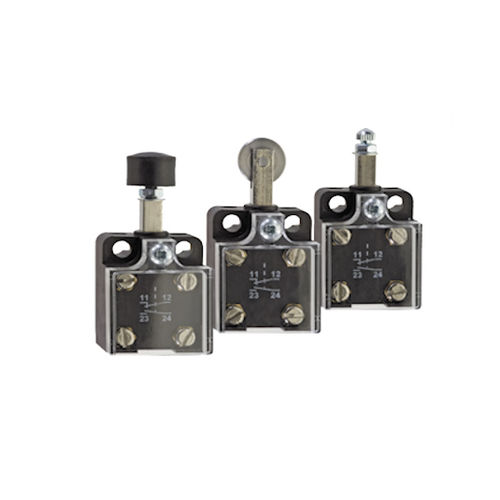

Rotating cam limit switch C 50
miniaturereinforcedself-extinguishing

rotating cam limit switch
rotating cam limit switch
rotating cam limit switch
rotating cam limit switch
rotating cam limit switch
rotating cam limit switch
Add to favorites
Compare this product


Characteristics

Technology
rotating cam
Size
miniature
Protection level
IEC, self-extinguishing, UL, reinforced
Other characteristics
with plunger, positive break
Domain
automation

Description

• Thermoplastic enclosure • Available on request for top mounting with 2 x M3 tapped holes • Applied standards - EN ISO 13849-1, EN 60947-5-1 Enclosure - thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0 Actuator - plunger: brass Tightening torque - enclosure mounting screws: approx. 1 Nm cover screws: approx. 0.6 Nm Degree of protection - IP 30 to IEC/EN 60529 B10d (10 % load) - 500 000 TM - max. 20 years Degree of pollution - 3 Contact material - silver Switching system - slow action, positive break NC contacts Switching elements - 1 NC/1 NO contact, type Zb Connection - screw connection terminals Cable cross-section - max. 1.5 mm² Rated impulse withstand voltage Uimp - 4 kV Rated insulation voltage Ui - 400 V Conventional thermal current Ithe - 4 A Rated operating current/voltage Ie/Ue - 4 A/400 VAC Utilisation category - AC-15 Short-circuit protection - 4 A gG/gN fuse Ambient temperature - –20 °C … +75 °C Mechanical life - > 1 million operations Operation cycles - max. 1800/h Repeat accuracy of switching points - ± 0.1 mm Contact opening - max. 2 x 4 mm
