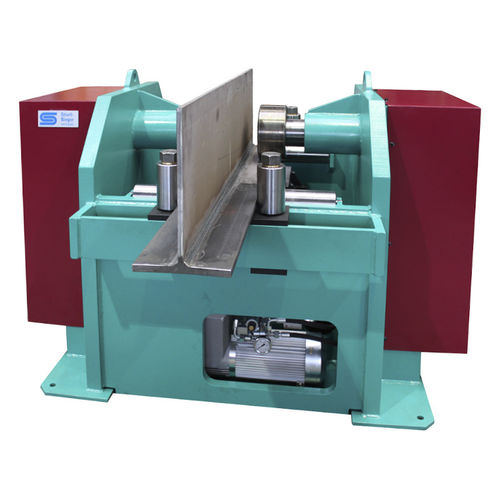

Profile straightening machine FRM-15

for bars

The FRM-15 flange straightening machine is designed for straightening flanges on welded T and H beams. The horizontal design of the machine makes handling of large, heavy beams easy. The workpiece is fed into the machine by means of a roller conveyor. The drive is provided by two powerful geared motors. Straightening of the beam requires one or more passes. The straightening rollers on the machine are set to the workpiece and the required straightening value. The robust design of the flange straightening machine ensures the best straightening results for the workpiece, reliable operation and a long service life with little maintenance. Control The position of the straightening roller can be adjusted continuously with the control unit (pendant control box) supplied. The control unit is also used to operate the roller conveyor (anti-clockwise/clockwise). Operation of the flange straightening machine can be picked up very quickly. Features Roller conveyor Roller conveyors are available in various lengths , e.g. 2 x 12 m
