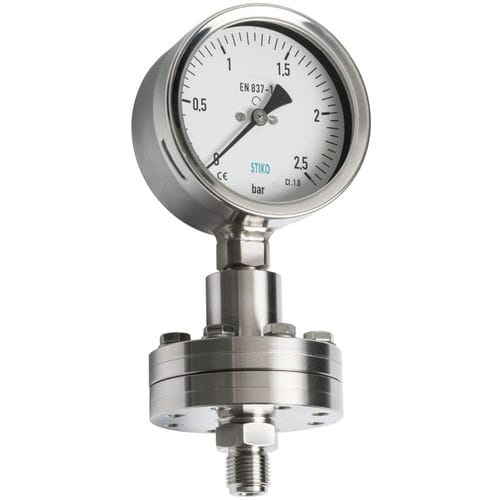

Analog pressure gauge PFQxxxXB-01

threadedstainless steeldiaphragm

Diaphragm seals are suitable for corrosive and clogging media (chemical seals), or for hygenic purposes in the pharmaceutical and food & dairy industries (sanitary seals). The separation from the process fluid is obtained by an elastic diaphragm sealed to the diaphragm seal body. The inner chamber between the diaphragm and the bourdon tube is filled with a suitable liquid whilst being brought into vacuum. Available for regular pressure gauges, but also for transmitters and differential pressure gauges. Seals can also be used in combination with capillary for remote reading. Diaphragm seals are available in a great number of different designs and exotic materials. Chemical seals: • Flush diaphragm: 1/2″, 3/4″, 1″ BSP and NPT • Internal diaphragm: all threaded connections and up to PN600 • I-type, flush diaphragm and open flange: all sizes available according to DIN, ANSI and JIS • Paper seal • PVC seal: also available in PP or PVDF in 1/4″BSP or 1/2″BSP • Mini seal / Monobloc • Max 1000 bar (not for all connections) Chemical seals are available in stainless steel AISI 316L, Monel, Hastelloy, Tantalum, Nickel, Titanium, Inconel and with PTFE, silver foils and gold plating. Sanitary seals: • DIN, SMS, APV, IDF, ISO, varivent, tri-clamp, in-line and homogeniser (flush diaphragm with flange or finger type) connections • Max 40 bar.
