Electric reach truck FXR series
side-facing seatedindoorpallet

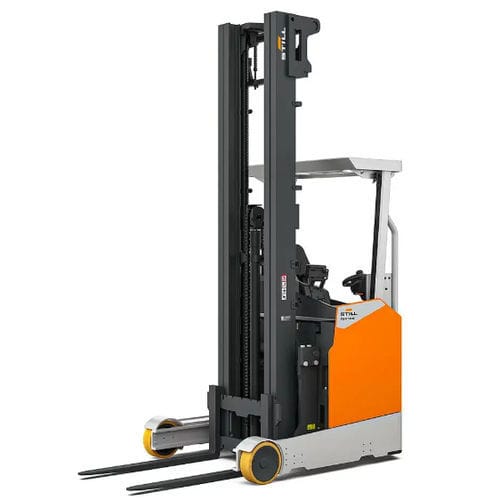

Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 2
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 3
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 4
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 5
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 6
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 7
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 8
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 9
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 10
Electric reach truck - FXR series  - STILL - side-facing seated / indoor / pallet - image - 11
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
side-facing seated
Applications
handling, for warehouse, pallet, industrial, indoor
Other characteristics
compact, increased safety, high-reach
Carrying capacity

1,400 kg, 1,600 kg, 1,800 kg
(3,086.5 lb, 3,527.4 lb, 3,968.3 lb)

Lifting height

9,020 mm
(355.12 in)

Overall width

1,260 mm, 1,270 mm
(49.6 in, 50 in)

Overall length

2,381 mm, 2,386 mm, 2,390 mm, 2,395 mm
(93.7 in, 93.9 in, 94.1 in, 94.3 in)

Load center distance

600 mm
(23.6 in)

Weight without load

Min.: 3,015 kg
(6,646.9 lb)

Max.: 3,420 kg
(7,539.8 lb)

Axle loading with maximum load front

Min.: 466 kg
(1,027.4 lb)

Max.: 1,864 kg
(4,109.4 lb)

Axle loading with maximum load rear

Min.: 3,045 kg
(6,713.1 lb)

Max.: 3,356 kg
(7,398.7 lb)

Axle loading without load front

Min.: 1,748 kg
(3,853.7 lb)

Max.: 2,087 kg
(4,601 lb)

Axle loading without load rear

Min.: 1,213 kg
(2,674.2 lb)

Max.: 1,367 kg
(3,013.7 lb)

Track width rear

1,167 mm
(45.9 in)

Height of mast when lowered

Min.: 2,035 mm
(80.1 in)

Max.: 3,535 mm
(139.2 in)

Free lift

2,074 mm, 2,130 mm
(81.7 in, 83.9 in)

Overall height with mast raised

7,025 mm, 7,086 mm
(276.6 in, 279 in)

Height to top of overhead guard

2,245 mm
(88.4 in)

Seat height

1,183 mm
(46.6 in)

Fork carriage width

840 mm
(33.1 in)

Ground clearance under mast with load

75 mm
(3 in)

Ground clearance at center of wheelbase with load

50 mm
(2 in)

Turning circle radius

1,498 mm, 1,596 mm, 1,665 mm
(59 in, 62.8 in, 65.6 in)

Travel speed

12 km/h
(7.5 mph)

Lifting speed

0.55 m/s, 0.56 m/s, 0.6 m/s, 0.62 m/s
(1.804 ft/s, 1.837 ft/s, 1.969 ft/s, 2.034 ft/s)

Lowering speed

0.55 m/s, 0.56 m/s, 0.57 m/s
(1.804 ft/s, 1.837 ft/s, 1.87 ft/s)

Gradeability

10 %

Rated output

5.7 kW
(7.7 hp)

Noise level

65 dB

Description

Move a lot of goods within a small space and a short period of time. That is the motto of the FXR 14C-18C. And rightly so. The compact reach truck ensures efficient process optimisation and high-density storage at heights of up to nine metres in one or two-shift operation. Its compact dimensions and reduced working aisle width mean that the FXR 14C-18C is also a class act in small warehouses and narrow aisles. Standard safety systems, such as Curve Speed Control and the driving speed limitation function in main lift mode, also ensure maximum safety – even for users with little experience. And last but not least, its integrated lithium-ion battery with quick-charging access means that the FXR 14C-18C is always ready for use when you need it. All this makes the smart warehouse assistant the ideal complement to the FM-X, which is designed for demanding applications and rack heights of up to 14 metres. The more compact FXR 14C-18C, on the other hand, is the perfect, economically attractive choice if you are looking for a highly efficient and safe solution for medium-duty applications and a lower frequency of use, for example in the wholesale and retail trade or in logistics companies. Optimised efficiency for daily operation with smart variants and assistance functions Compact on the outside, powerful on the inside – ready for use in the tightest of spaces Smart investment: premium performance and reliability at an outstanding price/performance ratio
