Automatic strapping machine EXS-158-PLUS
for cartonsfor polypropylene straps220V single phase

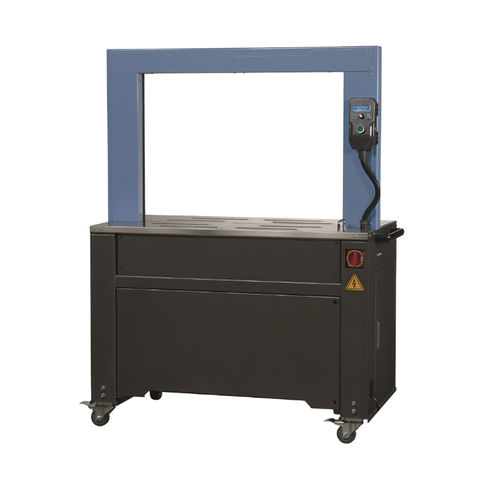

Automatic strapping machine - EXS-158-PLUS - STOCKMAN - for cartons / for polypropylene straps / 220V single phase
Automatic strapping machine - EXS-158-PLUS - STOCKMAN - for cartons / for polypropylene straps / 220V single phase
Automatic strapping machine - EXS-158-PLUS - STOCKMAN - for cartons / for polypropylene straps / 220V single phase - image - 2
Automatic strapping machine - EXS-158-PLUS - STOCKMAN - for cartons / for polypropylene straps / 220V single phase - image - 3
Add to favorites
Compare this product

Characteristics

Type
automatic
Product applications
for cartons
Type of strap
for polypropylene straps
Power supply
220V single phase
Sector
for the packaging industry
Rate

37 p/min

Overall height

1,535 mm
(60.4 in)

Overall width

619 mm
(24.4 in)

Depth

1,130 mm
(44 in)

Strap width

9 mm, 12 mm, 15 mm
(0.354 in, 0.472 in, 0.591 in)

Clamping tension

Max.: 65 kg
(143.3 lb)

Min.: 5 kg
(11.02 lb)

Weight

180 kg
(396.83 lb)

Description

This silent automatic strapping machine can strap 37 parcels per minute. • Fully automatic strapping machine • Automatic or manual launch • Extremely precise electronic strap tension adjustment protects the cartons and guarantees an optimal strapping • Fast and efficient with 37 strapping operations per minute • Strap end detection with ejection of remaining strap or strap loop in case of empty strapping • Robustness, reliability and very low maintenance thanks to its motor direct driving system • Drive motor without chain or belt • Silent strapping machine • Weld cooling delay comes standard • Motor starts only when the strap is inserted • Control panel with LED display that can be moved 180° on each side of the strapping machine • Fitted with four swivel castors with brake • Download the product specifications for further technical information
