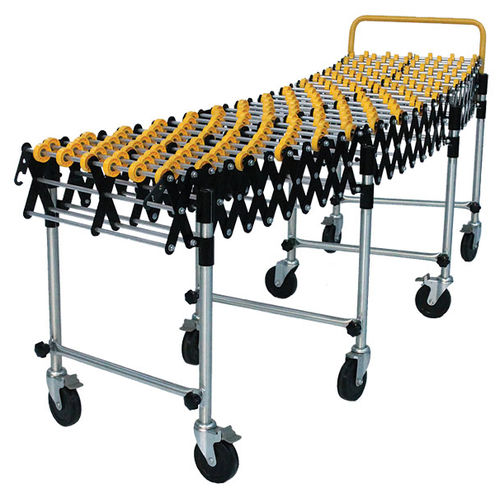

Skate wheel conveyor FWC-A serieshorizontaltransportflexible
Add to favorites
Compare this product
Characteristics
- Technology
- skate wheel
- Form
- horizontal
- Function
- transport
- Construction
- flexible, height-adjustable
- Maximum load
70 kg
(154.324 lb)- Effective width
500 mm, 600 mm
(20 in, 24 in)- Length
Max.: 6,918 mm
(272.36 in)Min.: 1,068 mm
(42.05 in)
Description
This plastic skate wheel conveyor prevents operators from musculoskeletal disorders (MSD). Choose the desired length by adding 50 or 60 mm wide modules.
• Steel frame
• Flexible conveyor suited for many applications
• Includes end stop roller and connecting hooks
• Adjustable height: from 800 to 1000 mm
• Plastic rollers (48.5 mm Ø) with enclosed ball bearings
• Additional conveyors can be connected
• Available in 3 to 6 modules for each width
• Download the product specifications for further technical information
