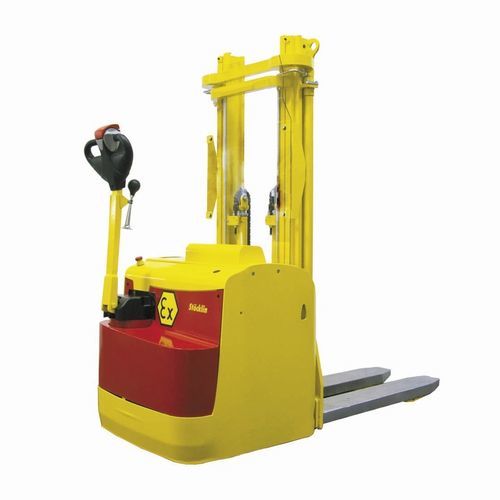

Electric stacker truck EXS 16walk-behindwith drawbarhigh-lift
Add to favorites
Compare this product
Characteristics
- Energy
- electric
- Operator
- walk-behind, with drawbar
- Other characteristics
- compact, rugged, high-lift
- Carrying capacity
1,600 kg
(3,527.4 lb)- Lifting height
4.8 mm
(0.19 in)- Free lift
Min.: 0 mm
(0 in)Max.: 1,870 mm
(73.6 in)- Overall width
800 mm
(31.5 in)- Overall length
2,020 mm
(79.5 in)- Fork width
196 mm
(7.7 in)- Fork length
1,150 mm
(45.28 in)- Fork thickness
60 mm
(2.36 in)- Turning circle radius
1,825 mm
(71.9 in)- Battery capacity
375 Ah
- Motor power traction
1.2 kW
(1.632 hp)- Motor power lifting
2.7 kW
(3.671 hp)- Travel speed
5.3 km/h, 5.5 km/h
(3.29 mph, 3.42 mph)- Lifting speed
0.12 m/s, 0.22 m/s
(0.394 ft/s, 0.722 ft/s)
Description
Dimensions and appearance like a standard device, with optimum handling, safe operation, optimum driving and lifting characteristics, including low power consumption and extremely easy maintenance.
With or without initial lift
