Electric stacker truck EDD 12 series
walk-behindwith drawbar24 V

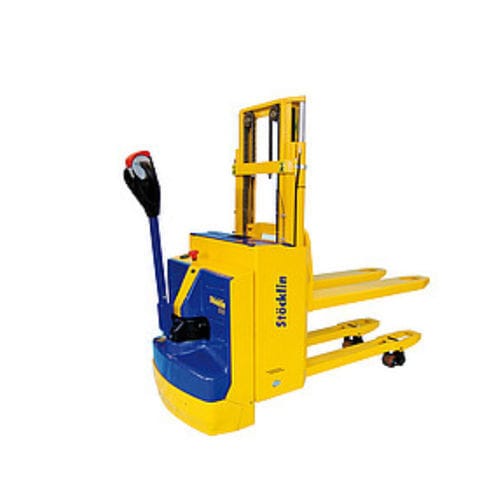

Electric stacker truck - EDD 12 series - Stöcklin - walk-behind / with drawbar / 24 V
Electric stacker truck - EDD 12 series - Stöcklin - walk-behind / with drawbar / 24 V
Electric stacker truck - EDD 12 series - Stöcklin - walk-behind / with drawbar / 24 V - image - 2
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind, with drawbar
Voltage
24 V
Applications
loading, unloading
Other characteristics
compact, rugged, high-lift, stainless steel
Carrying capacity

1,200 kg, 2,000 kg
(2,645.5 lb, 4,409.2 lb)

Lifting height

Max.: 2,456 mm
(96.69 in)

Min.: 1,500 mm
(59.06 in)

Overall width

700 mm
(27.6 in)

Overall length

2,015 mm, 2,373 mm
(79.3 in, 93.4 in)

Fork width

185 mm
(7.3 in)

Fork length

1,150 mm
(45.28 in)

Fork thickness

60 mm
(2.36 in)

Turning circle radius

1,827 mm, 2,178 mm
(71.9 in, 85.7 in)

Battery capacity

195 Ah, 255 Ah, 280 Ah

Motor power traction

2.5 kW
(3.399 hp)

Motor power lifting

3 kW
(4.079 hp)

Travel speed

5.5 km/h
(3.42 mph)

Weight

950 kg
(2,094.39 lb)

Description

Agile - compact - efficient With a width of just 700 mm and power steering, the double-decker pallet trucks in the Stöcklin EDD 12 series are ideal for maneuvering in the tightest of spaces. The side drive and a lateral support roller guarantee optimum driving stability at all times. Further versions EDD 12-P (with folding platform and optional side bars or fixed side walls) The Stöcklin EDD 12-P has a triple-sprung, foldable platform for high driving comfort.
