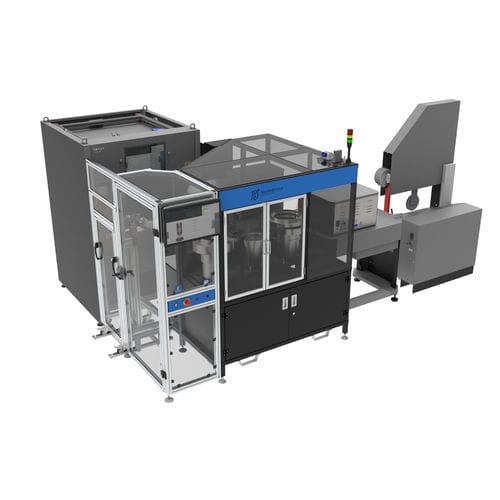

Robotic assembly line HV-RoFAL

fully-automatichigh-voltagefor cutting solutions

The High-Voltage - Robotic Fully Automated Line (HV-RoFAL), is a complete and fully automatic line to cut, pre-assemble components and perform cable processing operations, in HV cables and HV connectors. It is a technological combination of Komax’s machines Kappa and Lambda 240 with StoneShield’s HV-RAM. The entire process is fully automatic and without operators’ intervention:   The machine is fed with the wire’s spools and with the connector’s components in bulk in feeders;   From here, the cable is cut, fed directly to the HV-RAM, that performs the pre-assembly of components;   The HV-RAM handles the cable and feeds it directly to the Lambda, to perform the wire processing operations, like cutting, stripping and crimping;   After the Lambda completes its cycle, the HV-RAM picks up the finished product and stores it into a cable rack for later pickup. The solution can work both for single core or double core cables, which if it is the case, two dereelers are used and the Kappa cuts both wires simultaneously. Combined with the full autonomy, an error free process is obtained since the products’ quality is controlled throughout the entire process. The seamless communication between all machines also ensures the complete traceability of the process.
