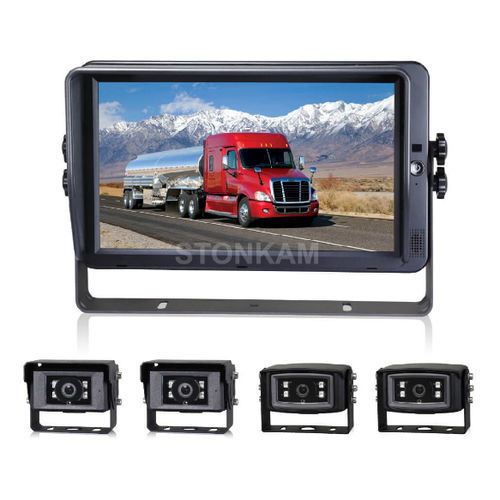

Vehicle monitoring system HD295D

for the automotive industryinfraredmulti-channel

- Support 4 HD channels with Max.1080P30 cameras inputs - Capacitive Touch screen control, IR control - 9 languages available for user operation.(i.e. English, Chinese, German, French, Japanese, Spanish , Italian, Russian, Dutch ) - Reverse cursor with on-off mode switch available - Support AUTO DIM - Support AUTO SCAN, with the scan time selectable between 1-60s - Support 5-channel display of auto trigger, with the trigger delay time selectable between 1-60s - Multiple video formats available: PAL / NTSC / HDAHD、HDTVI、HDCVI(720P/1080P) Specification Resolution - 1024 x 3(RGB) x 600 Maximum Number of Cameras - 4 Audio input - 4 Audio output (loudspeaker) - 1W Trigger - 5 Max. Brightness - 600 cd/m² Contrast - 600：1 Minimum Operating Temperature - -20ºC, RH 90% Maximum Operating Temperature - +70ºC, RH 90% Viewing Angle Monitor - U: 85°, D: 85°, R: 85°, L:85° Mirror Function - Yes Monitor Diameter (mm) - 267mm (W) × 159.5mm (H) × 30mm (T). Split Screen - No Volts - 10-32V Consumption - less than10W(without cameras)
