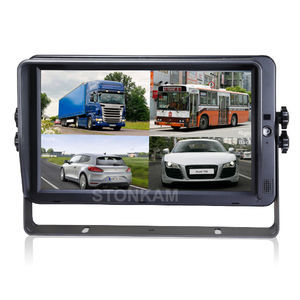

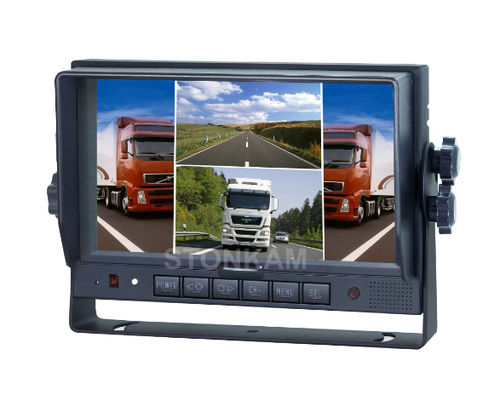

STONKAM 7 inch HD vehicle monitor supports 4CH HD cameras input which allows the driver to see directly the environment around the vehicle while driving. This can reduce the possibilities of scratch and other accidents. This monitor also can satisfy the customers demand for a clear and convenient video surveillance.
• 7 inch HD quad-view monitor;
• All manu actions support touch screen control;
• Supports 4 HD camera inputs, Quad-view display supported;
• Video formats available: 1080P30、1080P25、720P30、720P25;
• Single, dual, triplex, quad, trefoil, Y-split image display;
• Support adjusting the image parameter of separate single channel; Image adjustable for horizontal viewing;
• 5 trigger input-wires, the trigger for time to return the main display and triggering priority can be configurable; the yellow wire can define the camera display to trigger ;
• Support auto scanning, with scan channel and time selectable;
• Rear view parking lines can be configured;
• Support 3 levels of manual-configuration and 2 levels of auto-configuration in auto-dim ;
• Multi-languages available;
• Wide voltage input: 10 - 32V ; support 12V or 24V automobile battery;
• Easy installation, convenient operation.
