Voltage battery monitor

programmableground fault

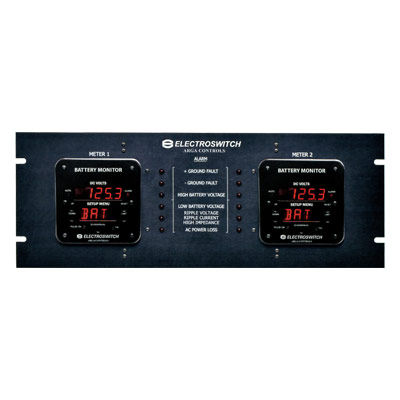

The Arga Battery Monitor Panel Mount from Electroswitch monitors battery voltage and ground fault detection for DC systems. A LED display identifies alarm conditions in addition to audible alarms. Easily calibrate and set alarm thresholds through the front panel menu. Alarm functions: battery voltage, ground fault detection, AC power loss, ripple voltage, ripple current, high impedance and predictive corrosion detection. Remote monitoring and reporting is ideal for multiple and distant locations. The Arga Battery Monitor Panel Mount supports Serial DNP3.0, Modbus and RS485 communications. Application Information Features •Adjustable alarm threshold set points •High / low battery voltage alarms •± Ground fault detection with alarm •AC charger power loss •High accuracy ± 0.2 VDC •Open cell / AC charger malfunction alarm Additional Options •Optional predictive corrosion detection alarm •Optional handheld ground fault detector oHandheld unit with on / off and volume adjust switch oLED and audible indicators for detected ground faults •Optional 19" rack (consult factory) Remote Monitoring and Reporting •Serial DNP3.0, Modbus, RS485: 2-wire standard, 4-wire optional •4 “Form C” dry contact alarm outputs •Analog current outputs (standard 4 to 20 mA)
