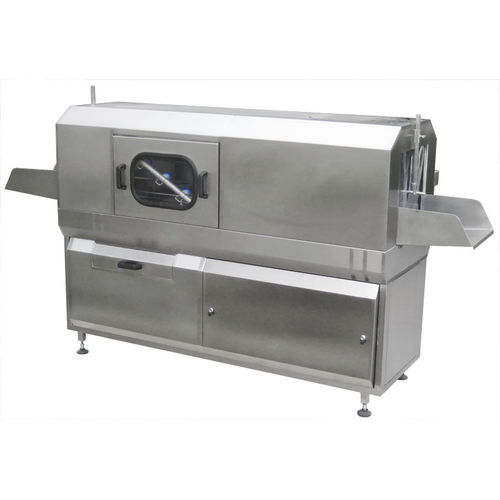

Solvent cleaning machine 20.0001.03 / 20.1001.03 / 20.0001.00 / 20.1001.00
waterautomaticcrate

solvent cleaning machine
solvent cleaning machine
Add to favorites
Compare this product


Characteristics

Technology
solvent, water
Operational mode
automatic
Applications
crate

Description

The machines are pass-through tunnel machines and are designed to clean standard E1-E3 plastic crates (or similar products) with max. capacity of up to 140 pcs./h. They consist of washing and rinsing zone. The washing is performed by means of centrifugal pump and adjustable (by hand) nozzles. The washing agent is added manually in the tank before starting the machine (option – automatic dosing system). The tank is equipped with manually cleaned filter for catching the bigger soils. The water for washing can be heated by means of electric heaters or a injector for direct steam. The desired water temperature can be adjusted between 30-60°C via thermostat. For the rinsing is used general water supply. After the rinsing this water is used also for refreshing and additional filling of the washing tank. The crates are transported through the zones by a motor driven chain (transport speed is smoothly adjustable). The gear motor is equipped with sliding connector to prevent eventual injuries to the personnel. The control panel can be mounted either on the left or on the right side of the machine – in accordance with the customer requirements. The machines are made of stainless steel 1.4301 (AISI 304) and comply with the Council Directives 2006/42/ЕС and 2006/95/EC, and USDA regulations.
