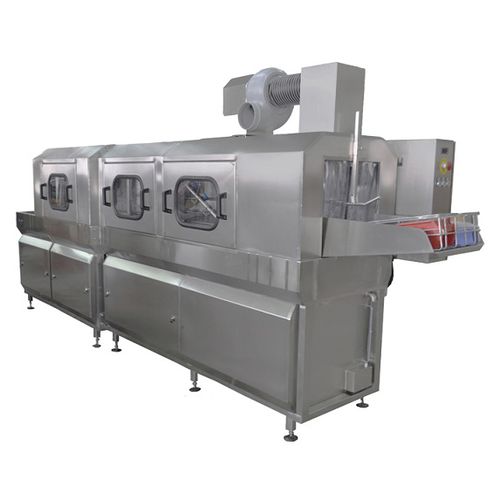

Water washing machine 20.0202.12

automaticprocessstainless steel

The machine is tunnel and is designed to clean crates 400х600х140-240 mm and boxes with dimensions 400x300x120-150 mm, 210x350x140 mm, 200x300x150 mm, 240x150x125 mm, 103x167x75 mm. It consists of zones for washing and rinsing and blowing-off. The washing is performed by means of centrifugal pump and adjustable (by hand) nozzles. The washing agent is added manually in the tank before starting the machine (option – automatic dosing system). The tank is equipped with manually cleaned filter for catching the bigger soils. The water for washing can be heated by means of electric heaters or a injector for direct steam. The desired water temperature can be adjusted between 30-60°C via thermostat. For the rinsing is used general water supply. After the rinsing this water is used also for refreshing and additional filling of the washing tank. In the last zone high pressure blowers and air knives blow off the water from all sides of the crates.
