Chain clamp CSC series

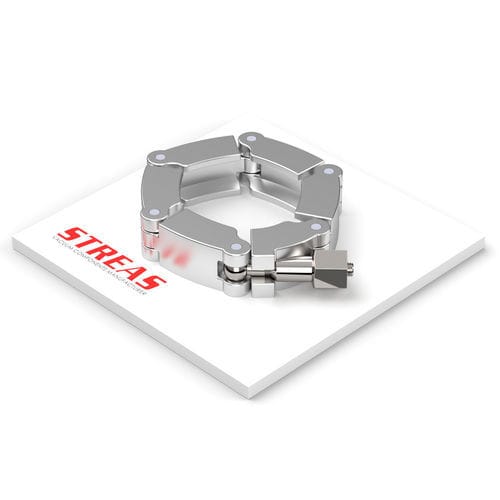

Chain clamp collar of the KF line, designed to clamp KF flanges in vacuum systems. It is a modular clamping element composed of multiple linked segments; closure is effected by contact with the flange foot using a knurled-head nut.

Product variants (product table)

• CSC1016KF-A: Material: Aluminum; Finish: Natural; DN: 10/16; A: 50 mm (1.969 in); Availability: High
• CSC2025KF-A: Material: Aluminum; Finish: Natural; DN: 20/25; A: 64 mm (2.52 in); Availability: High
• CSC3240KF-A: Material: Aluminum; Finish: Natural; DN: 32/40; A: 78 mm (3.071 in); Availability: High
• CSC50KF-A: Material: Aluminum; Finish: Natural; DN: 50; A: 100 mm (3.937 in); Availability: High
• CSC1016KF-N: Material: Nylon; Finish: Natural; DN: 10/16; A: 50 mm (1.969 in); Availability: Medium
• CSC2025KF-N: Material: Nylon; Finish: Natural; DN: 20/25; A: 64 mm (2.52 in); Availability: Medium
• CSC3240KF-N: Material: Nylon; Finish: Natural; DN: 32/40; A: 78 mm (3.071 in); Availability: Medium
• CSC50KF-N: Material: Nylon; Finish: Natural; DN: 50; A: 100 mm (3.937 in); Availability: Medium

Features / technical specifications

• Line: KF
• Line type: KF
• Product type: Clamping closures (chain collar)
• Available materials: Aluminum and Nylon
• Standard finish: Natural
• Closing mechanism: Contact closure with the flange foot using a knurled-head nut
• Configuration: Element composed of multiple linked segments (modular for different DN)
• Main reference dimension (A): available in 50 mm, 64 mm, 78 mm, 100 mm (inch equivalents indicated per item)
• Technical documentation available: commercial product sheet and technical datasheet (PDF)
