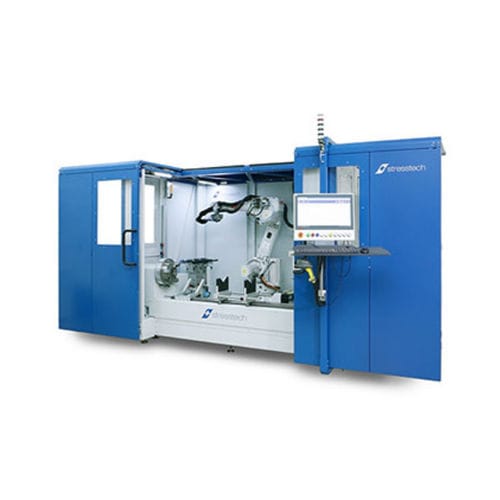

Robotic inspection system RoboScan M

cameralaserscanning

RoboScan M is designed for the quality control needs of small to large sized circular symmetrical parts like passenger car and truck shafts. RoboScan M provides fast and flexible measurements with high repeatability for horizontally oriented parts up to 1500 mm long. • Operator friendly user interface with two different software options • Free access for part clamping allows ergonomic working position • Fast measurement cycles even for inline measurements • RoboScan M system consist of standard features, mandatory accessories and options. Enclosure The robot is located inside the safety enclosure which houses the entire measurement movement system. The safety enclosure is equipped with an emergency stop system, two safety doors at the front and one safety (service) door on the left side to access the sensor storage rack for sensor maintenance. The electric cabinet is integrated to enclosure. Robot • ABB Industrial Robot • ABB Robot Controller • ABB Teach Pendant Measurement programming software • The measurement programming software takes care of running the robot when programs are created. Creating measurement programs is made easy. The measurement programming software is connected with our ViewScan measurement data analyzing program. The measurement programming software depends on the part to be measured. As standard, there are two options: • Stresstech Teaching App: suitable for vertically oriented parts like hypoid gears, bearings • HTML-based human-machine interface: Suitable for shafts e.g. for measuring camshafts lobes and crankshaft journals.
