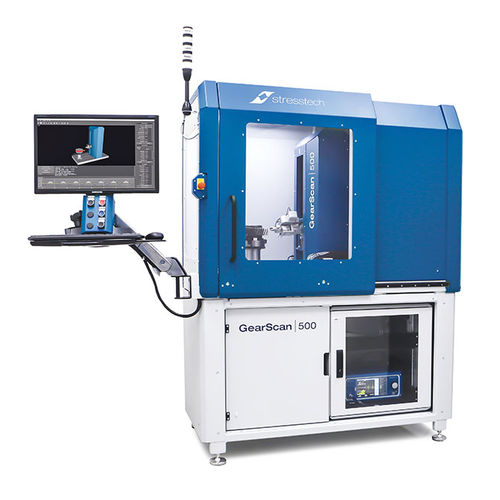

GearScan 500 is an automated grinding burn and heat treatment defect detection system. It is designed for quality control needs of small to medium sized gears.
• Programmable measurement positioning with EasyGear software
• Sensors can be changed with quick coupling without any tools, by only unplugging and plugging in the sensor connector
Standard System Features
• Control panel with:
• Lamp test button
• Stop measurement button
• Reset button
• Control power off button
• Door open light
• Emergency stop
• Chuck RÖHM KRF 125
• Sensor carrier
• Automated X and Z linear movements
• Automated A and T rotations
• Integrated cabinet for Rollscan and PC
• Integrated electric cabinet with main switch
• Signal light tower
• Sliding door with safety switch
• Enabling switch for manual drive
• Keyboard and monitor mount (Ergotron)
• Storage
