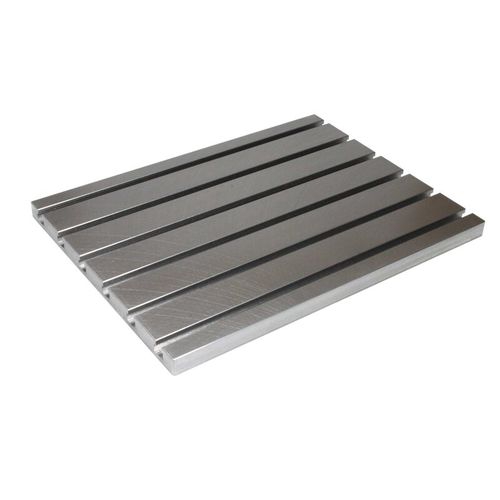

Precision clamping plate A1591/A1605/A1615/A1611/A1631 Series

cast ironsteel

Classic t-slot plates in many different dimensions. These plates are milled of solid C45/1.1730 tooling steel. They are thermally stress reliefed and face milled. The advantages of C45 over cast iron plates is a higher tensile strength and toughness. A narrow t-slot pitch allows a broad application spectrum. By manufacturing with solid material and a smooth underside, these panels can be incorporated any or get further processed. Steel T-slot plate 2020 measure: 200 x 200 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.05 mm /200 mm Steel T-slot plate 3020 measure: 300 x 200 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.05 mm /200 mm Steel T-slot plate 4020 measure: 400 x 200 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.05 mm /200 mm Steel T-slot plate 3030 measure: 300 x 300 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.05 mm /200 mm Steel T-slot plate 5020 measure: 500 x 200 mm made for T-Slot nuts according to DIN508 Tolerance/Precision: +/- 0.05 mm /200 mm Steel T-slot plate 4030 L= 400 mm B= 300 mm H= 20 mm
