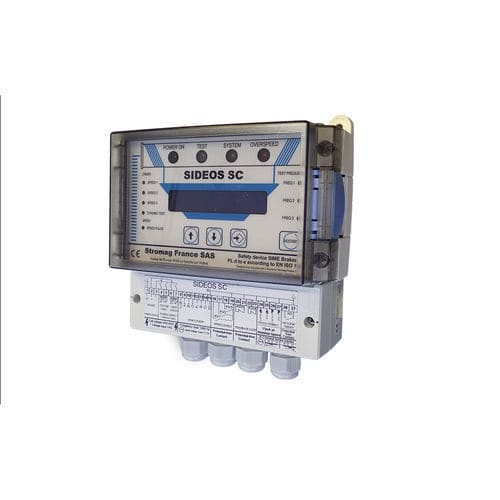

SIDEOS SC is a configurable and secure module for speed monitoring, fitted with an efficient auto control system which secures the overall operation of the overspeed detection system.
This configurable system allows the monitoring of the speed according to a variable threshold according to the requested speed.
It allows to obtain, when installation is correct, a speed monitoring system secure up to category 4 with the performance level of pL = e according to the standard ISO/IEC 13849-1.
SIDEOS SC module monitors:
the speed
the stop
the rotation direction
the kinematic linkage
the signals of the incremental encoder
the external speed signal 0-20mA
the control contacts indicating the rotation direction to monitor
the system fault and overspeed outputs
the internal signals (Autotest – Dynamic Test – Cross monitoring)
MARKETS
Steel Industry
Offshore
Mining and Conveyors
Bridge and Dam
Crane and Hoist
Amusement Ride and Ski Lift
General Machinery
FEATURES
Overspeed detection device
Conform to the machine security standards :
NF EN ISO 13489-1
Performance level PL=d to PL=e
Category : 2 to 4 MTTFd = high DC = high
EC marking of conformity :
2006/42/EC directive Machine
2006/95/EC Low voltage directive (standard NF EN 60204-1)
2004/108/EC EMC directive (standards NF EN 61000-6-2, NF EN 61000-6-4)
Operating conditions :
Ambient temperature : -20°C to +60°C
IP65 protected electrical casing
Electrical data :
AC: 115/230 V AC ± 10% 50/60Hz
DC: 24V DC
Other voltages: consult us
Options :
Steel casing IP66 IK10
Anti-condensation kit
