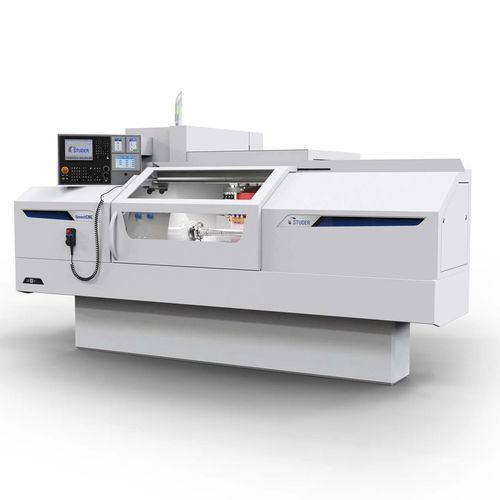

External cylindrical grinding machine favorit

universalCNCprecision

The top performer in terms of value for money stands for many years of precision. The favoritCNC with 650 (25.6”) or 1000 mm (39.4”) distance between centers for universal use is easy and quick to program thanks to StuderPictogramming. Due to various options such as a measuring system, balancing system, contact detection, and longitudinal positioning, the machine can be easily adapted to other grinding tasks. The favoritCNC has a center height of 175 mm (6.9”) and can machine workpieces with a maximum weight of 80 (176.4 lbs) / 120 kg (264.6 lbs). Hardware • Selectable wheelhead: ◦ Fixed wheelhead, manually swiveling ◦ Wheelhead with grinding wheel on the right with internal grinding (option) • Fixed or swiveling table (up to 8.5°) • External and internal grinding possible in one setup • Granitan® S103 mineral-cast machine base • Digital display of the swivel angle • Automatic operating door • Manual control unit for setup close to the grinding process Software • Very simple programming thanks to StuderPictogramming • StuderGRIND programming software (optional) for creating grinding and dressing programs on an external PC
