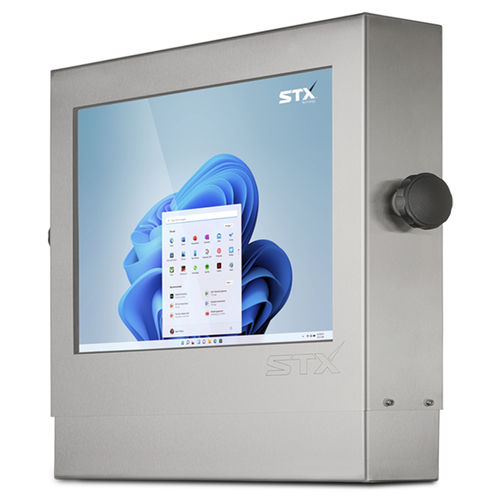

Stainless steel panel PC X9000 seriesmultitouch screenresistive touch screenLCD
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD, resistive touch screen, capacitive touch screen, multitouch screen
- Display size
- 15", 21.5", 19", 17", 12.1", 18.5", 24", 10.4", 13.3"
- Resolution
- 1024 x 768, 1280 x 1024, 800 x 600
- Processor
- Intel® Celeron® 6305E, Intel® Core™ i5-1135G7, Intel® Core™ i7-1165G7, Rockchip RK3588S
- Applications
- industrial, for IoT applications, for the food industry, for the mining industry
- Other characteristics
- high-performance, fanless, all-in-one, stainless steel, wide temperature range, high-brightness, Windows 10, Windows 11, waterproof, rugged, washdown
Description
Model Options
All-in-One (AIO) or Touch Monitor
Touch Type
Resisitive Touch
Display Sizes
8.4" | 10.4" | 12.1" | 15" | 17" | 19"
Display Brightness
400 nits | 600 nits High Brightness | 1000 nits High Brightness
CPU
Intel® Celeron® 6305U | Intel® Core™ i5-1135G7 | Intel® Core™ i7-1165G7 | ARM RK3588S
Memory
8GB | 16GB | 24GB | 40GB
Hard Drive
120GB | 256GB | 512GB | 1TB
Operating systems
Windows 10 LTSC | Windows 11 Professional | Linux | Android 13
Video
Mini DP | HDMI Output
Network
1 Ethernet optional up to 3 Ethernet
Optional WiFi 6 Dual Band | Bluetooth
Optional 3G/4G GPS
Optional CANBus
Optional RS485
Optional RS422
USB
1 USB 3.0 optional upto 4 USB 3.0 and 2 USB 2.0
RS232
Optional up to 4 RS232
Power Input
10~30VDC | 240VAC | 110 VAC
Mounting
M10 Side Mounts | VESA Mount
Material Grade
Stainless Steel 304 | Stainless Steel 316
Finish
Brushed | Highly Polished | Electro Polished | Flat (BA) | Matte Black | Safety Yellow | Safety Orange
Model Sizes
X9008 | 8.4" | 800x600 (4:3)
X9010 | 10.4"| 1024x768 (4:3)
X9012 | 12.1"| 1024x768 (4:3)
X9015 | 15" | 1024x768 (4:3)
X9017 | 17" | 1280x1024 (5:4)
X9019 | 19" | 1280x1024 (5:4)
