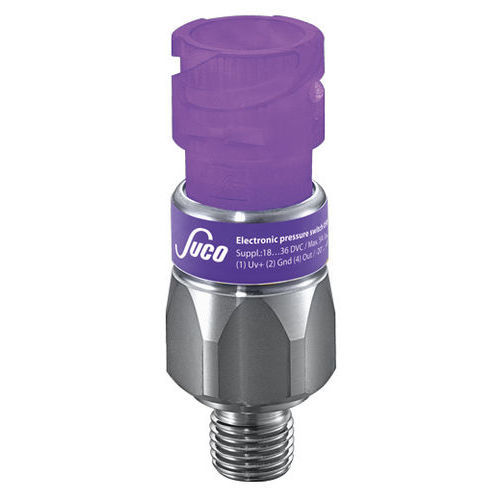

Relative pressure transmitter 0602

ceramic4-20 mA0-10 V

• Very attractively priced electronic pressure transmitters •High overpressure protection (up to 2 x) •Small, compact transmitters •High level of adaptability to your requirements (custom solutions) • Ceramic sensor in thick lm technology •Housing made of stainless steel (1.4305), others on request •Available as ‘plasma cleaned for oxygen applications‘1 Technical details Output signal: 0 - 10 V (3-wire) Supply voltage UV+ : 11 - 32 VDC with reverse voltage protection Permissible load / apparent ohmic resistance: ≥ 4.7 kΩ Idle power consumption: approx. 5 mA Mechanical life expectancy: 5,000,000 pulsations at rise rates to 1,000 bar/s at pnom Permitted pressure change rate: ≤ 1,000 bar/s Repeatability 2): ±0.1 % FS Temperature error 2): ≤ ±0.04 % of full scale (FS) / °C Insulation resistance: > 100 MΩ (35 VDC) Response time 10 – 90 %: ≤ 2 ms Vibration resistance: 20 g at 4 – 2000 Hz sine wave; DIN EN 60068-2-6 Shock resistance: half sine wave 500 m/s2; 11ms; DIN EN 60068-2-27 Electromagnetic compatibility: EMC 2014/30/EU, EN 61000-6-2:2005, EN 61000-6-3:2007 Max. length of connection cable: 30 m Protection against reverse polarity, short-circuit and overvoltage: Built-in
