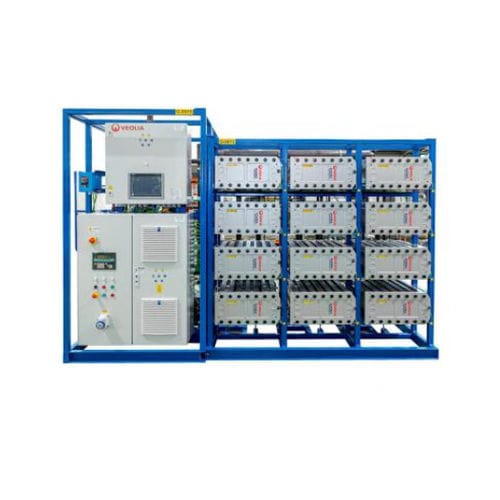

EDI electrodeionization plant Mk series

E-Cell EDI systems are pre-engineered and readily available with 1 - 12 E-Cell MK-5 EDI Stacks or 16-20 E-Cell MK-9 EDI Stacks. Drawing on extensive EDI expertise and proven engineering practices, these systems represent years of refinement in design and construction. E-Cell EDI systems offer streamlined project implementation for both EDI newcomers and those seeking to benefit from Veolia's manufacturing excellence. While built upon four foundational designs, E-Cell EDI systems offer customizable configurations by adjusting stack quantities to match specific capacity requirements. Flow rates can be fine-tuned for each stack to achieve desired water quality parameters, as calculated through Winflows EDI projection software. Features E-Cell Electrodeionization (EDI) systems include the full complement of equipment needed for a fast and efficient installation, including: Power panel with DC drive Individual stack current monitoring Instrumentation packages including flow, resistivity/conductivity, and pressure transmitters Programmable logic controller (PLC) Human-machine-interface (HMI) Optional feed water divert valve and programming
